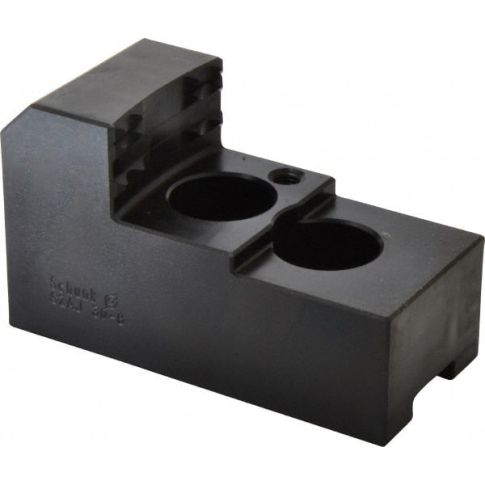

Hard Lathe Chuck Jaw: 304.8 mm Max Chuck Dia, Top MPN:138134
Hard Lathe Chuck Jaw: 304.8 mm Max Chuck Dia, Top
The hard lathe chuck jaw is a versatile tool that offers superior holding power and durability for turning operations in the industrial sector, making it an essential piece of equipment for machinists and manufacturers alike. With its large maximum chuck diameter of 304.8 mm, this high-performance lathe jaw can accommodate a wide range of workpieces, enabling users to complete their tasks efficiently and accurately. From automotive parts to aerospace components, this hard lathe chuck jaw is designed to withstand the rigors of industrial use while delivering precision results that meet or exceed industry standards.
Hard Lathe Chuck Jaw: 304.8 mm Max Chuck Dia, Top 63.5 mm OAH, 30 mm Between Mount Hole Centers, Steel
Product Information
- : 138134
- Distance Between Mount Hole Centers (Decimal Inch): 1.1811
- Distance Between Mount Hole Centers (mm): 30.00
- Groove Width (Decimal Inch): 0.8268
- Groove Width (mm): 21.00
- Jaw Interface Type: Serrated
- Jaw Type: Top
- Material: Steel
- Maximum Compatible Chuck Diameter (mm): 304.80
- Maximum External Chucking Diameter (Decimal Inch): 11.8900
- Maximum Internal Chucking Diameter (mm): 302.00
- Minimum Compatible Chuck Diameter (Decimal Inch): 12.0000
- Minimum Internal Chucking Diameter (Decimal Inch): 9.3701
- Minimum Internal Chucking Diameter (mm): 238.00
- Number of Jaws: 3
- Overall Height (Mm - 5 Decimals): 63.50
- Slot Width: 21.00
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: DE, Germany
- TAA Compliant: Yes
- UNSPSC: 23153000
- CA Restricted (Prop 65): Unknown
- Package Weight: 11.00
- Prohibited States: AK,HI,PR
Product info last updated on January 1, 2025 12:21am UTC
Category: Lathe Chucks and Accessories
