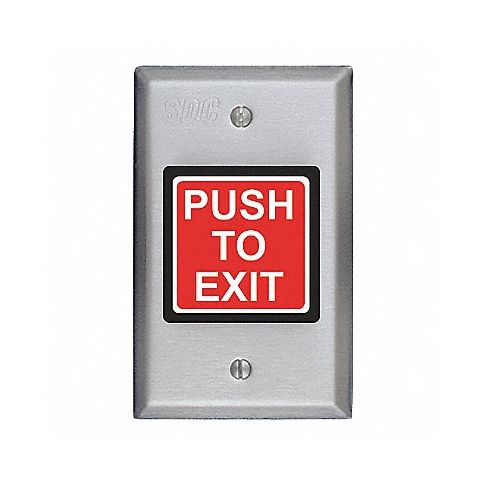

Push to Exit Button 2-7/8 in W SPDT MPN:423PU
The Push to Exit Button 2-7/8 SPDT offers a simple yet effective way to activate exit alarms, automatic doors, and other safety systems. Constructed from high-quality materials, this button provides durability and long-lasting performance even in demanding environments. With its sleek design, push-to-exit mechanism, and easy installation, this button is an excellent choice for a wide range of industries such as industrial, commercial, and residential buildings, healthcare facilities, educational institutions, and transportation hubs. Its compact size and simple operation make it ideal for tight spaces where traditional levers or switches may be difficult to access. By providing intuitive and reliable operation, the Push to Exit Button 2-7/8 SPDT ensures that critical safety systems are always within reach.
Technical Specifications
- Item Push to Exit Button
- Type Push to Exit
- Switch Action SPDT
- Material Stainless Steel
- Finish Aluminum
- Width 2 7/8 in
- Rating 3A @ 30 V DC
- Input Voltage 12 to 24V AC/DC
- Output pneumatic timer, Adjustable 1-180 seconds
- Operating Temp. 32 to 120 Degrees F
- Keypad No
- Cylinder No
- For Use With Access Controls
- Includes Mounting Hardware
Manufacturer Details
- Manufacturer: SDC
- Condensed Mfg Number: 423PU
- MPN: 423PU
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509031
- GDS Category Name: Electromagnetic Lock Activation Devices
- GDS Family Name: Electromagnetic Locking Systems
- GDS Segment Name: Hardware
- UNSPSC: 46171503
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Locks and security hardware and accessories
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Lock sets
- UNSPSC Family ID: 17
- UNSPSC Family Name: Security surveillance and detection
- UNSPSC Segment ID: 46
- UNSPSC Segment Name: Defense and Law Enforcement and Security and Safety Equipment and Supplies
Shipping Details
- Not For Sale In: HI AK PR
