Pillow Block Brg 1 3/8 in Bore Cast Iron MPN:NPL-22

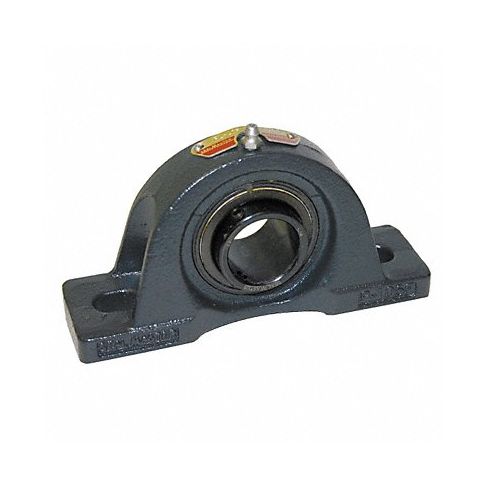

Pillow Block Brg 1 3/8 in Bore Cast Iron
Introducing our Pillow Block Brg 1 3/8 in Bore Cast Iron - the perfect choice for any heavy-duty machinery that requires durable and reliable bearings. With a sturdy cast iron housing and steel shaft, this bearing is built to withstand extreme pressures and impacts, ensuring smooth and precise movements. The 1 3/8 inch bore diameter provides a secure fit on your machinery, while the 5-inch bolt hole center-to-center measurement makes installation and adjustment easy. Use it for applications such as agricultural equipment, construction machinery, and industrial robots, and experience the difference that our socially responsible veteran-owned business can make. Upgrade your machinery with this top-of-the-line pillow block bearing today!
Top product features:
- Sturdy cast iron housing for heavy-duty applications
- Steel shaft for durability and impact resistance
- 1 3/8 inch bore diameter for a secure fit on machinery
Top product applications:
- Agricultural equipment
- Construction machinery
- Industrial robots
Buy Sealmaster item #NPL-22 from our huge selection of Hardware Accessories to show your support for our ♻ Socially Responsible Veteran-Owned Business.
Technical Specifications
- Item Pillow Block Bearing
- Mounted Bearing Item Pillow Block Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 3/8 in
- Bolt Hole Center-to-Center 5 in
- Mounting Surface to Shaft Center 1 13/16 in
- Bearing Housing Material Type Cast Iron
- Shaft Locking Type Set Screw
- Bearing Insert Material 52100 Chrome Steel
- Series NPL
- Number of Bolts 2
- Bolt Size 1/2 in
- Overall Height 3 11/16 in
- Overall Width 1 7/8 in
- Overall Length 6 9/16 in
- Bearing Lubrication Sealmaster GoldPlex-HP or NLGI #2 Equivalent
- Dynamic Load Capacity 5,782 lb
- Static Load Capacity 3,493 lb
- Temp. Range -20 Degrees to 220 Degrees F
- Finish Black Oxide
Manufacturer Details
- Manufacturer: Sealmaster
- Condensed Mfg Number: NPL22
- MPN: NPL-22
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Pillow Block Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171511
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Pillow block bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
