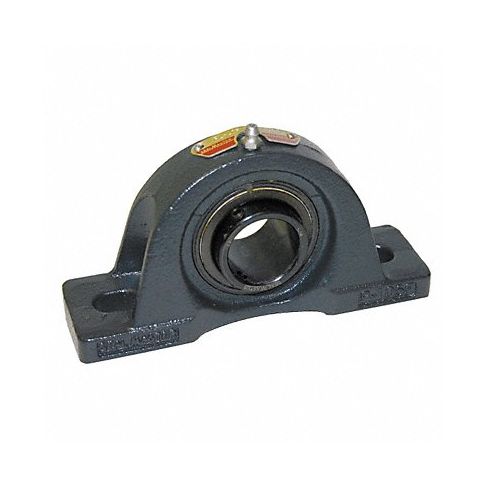

Pillow Block Brg 2 7/8 in Bore Cast Iron MPN:NPL-46
PermaSleeve wire marker sleeves offer exceptional protection and resistance to oil, UV rays, moisture and abrasion for extended periods of time. Manufactured from premium PVC material with an innovative design that adheres firmly onto wires without the need for additional fasteners or tools. Easy-to-use tool-less application eliminates the need to cut or strip wires, saving valuable time during installation. Ideal for indoor and outdoor applications where long-lasting protection is crucial in a wide range of industries such as telecom, electrical, automotive, construction or solar energy systems. Ensure maximum wire safety with PermaSleeve's superior adhesive technology that safeguards your wires against weather, wear, and damage for years to come.
Technical Specifications
- Item Pillow Block Bearing
- Mounted Bearing Item Pillow Block Bearing
- Bearing Insert Type Ball
- Bore Dia. 2 7/8 in
- Bolt Hole Center-to-Center 9 1/2 in
- Mounting Surface to Shaft Center 3 5/16 in
- Bearing Housing Material Type Cast Iron
- Shaft Locking Type Set Screw
- Bearing Insert Material 52100 Chrome Steel
- Series NPL
- Number of Bolts 2
- Bolt Size 3/4 in
- Overall Height 6 7/16 in
- Overall Width 3 3/8 in
- Overall Length 12 in
- Bearing Lubrication Sealmaster GoldPlex-HP or NLGI #2 Equivalent
- Dynamic Load Capacity 14,839 lb
- Static Load Capacity 11,224 lb
- Temp. Range -20 Degrees to 220 Degrees F
- Finish Black Oxide
Manufacturer Details
- Manufacturer: Sealmaster
- Condensed Mfg Number: NPL46
- MPN: NPL-46
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Pillow Block Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171511
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Pillow block bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
