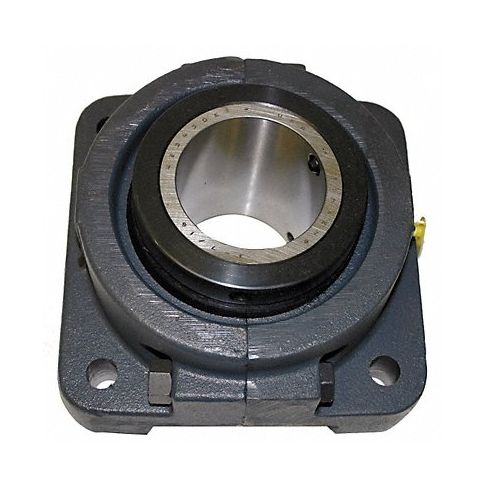

4 Bolt Flng Brg Taper Roll 1 3/8in Bore MPN:RFB 106
4 Bolt Flng Brg Taper Roll 1 3/8in Bore
A heavy duty 4 bolt flange bearing with 1 3/8 inch bore is manufactured to offer durability and stability, making it suitable for high load capacities while rotating machinery. Its double row design maximizes its capacity by distributing the load equally along two rows of balls. The taper roller design allows for a more significant radial load capability than cylindrical or spherical rollers; thus, being ideal for use in industries such as construction equipment, agricultural machinery and mining industry gears that require reliable and heavy-duty bearing components. Additionally, these flange bearings are easy to install and provide low-noise operation providing long lasting performance.
✓ Buy Sealmaster item #RFB 106 and get Free Shipping from our large selection of Hardware Accessories and show your support for Veteran-Owned Businesses.
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Tapered Roller
- Bore Dia. 1 3/8 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 3 1/2 in
- Series RFB
- Bolt Size 1/2 in
- Overall Height 4 5/8 in
- Overall Width 3 1/16 in
- Overall Length 4 5/8 in
- Bearing Lubrication Sealmaster GoldPlex-HP or NLGI #2 Equivalent
- Dynamic Load Capacity 4,760 lb
- Static Load Capacity 2,080 lb
- Temp. Range -20 Degrees to 220 Degrees F
- Finish Black Oxide
- Dimension A 4 5/8 in
- Dimension B 3 1/2 in
- Dimension BC 4 61/64 in
- Dimension C 2 9/16 in
- Dimension D 2 9/16 in
- Dimension E 1/16 in
- Dimension F 1/2 in
- Dimension G 1 in
- Dimension H 1 in
- Dimension J 3 7/8 in
- Dimension L 2 5/8 in
- Dimension M 3 1/4 in
- Dimension N 1 25/64 in
Manufacturer Details
- Manufacturer: Sealmaster
- Condensed Mfg Number: RFB106
- MPN: RFB 106
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:46am UTC
Category: Bearings
