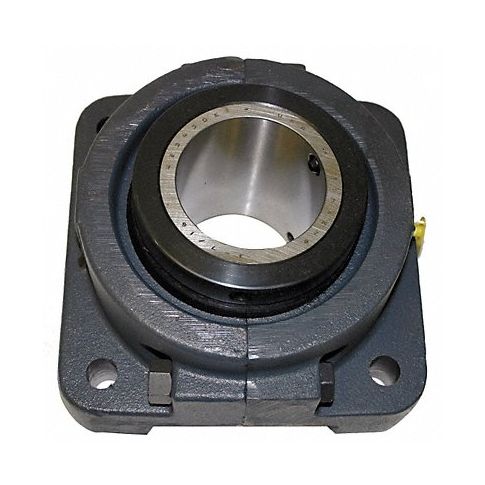

4 Bolt Flng Brg Taper Roll 1 1/2in Bore MPN:RFB 108
Free Shipping
In Stock
Introducing Sealmaster's 4-Bolt Flange Bearing with Tapered Roller Insert - an exceptional bearing for heavy-duty applications in various industries. With its rugged construction and compact design, this product is ideal for mounting onto shafts or rails, ensuring reliable and durable support for loads weighing up to 70,000 pounds. Its tapered roller insert provides high-load capacity, wear resistance, and excellent radial & axial stability. The 4-bolt flange design ensures easy installation and offers additional mounting options for versatile applications. Use it in agricultural machinery, food processing equipment, and other demanding industrial environments where you need robust bearings to withstand tough conditions. Upgrade your equipment with Sealmaster's 4-Bolt Flange Bearing - the solution for high performance, long-lasting support!
Top product features:
- High Load Capacity With its rugged construction and compact design, this product is ideal for supporting heavy loads weighing up to 70,000 pounds.
- Tapered Roller Insert The tapered roller insert provides exceptional radial & axial stability and wear resistance, ensuring long-lasting performance even under demanding conditions.
- Four-Bolt Flange Mounting Design The 4-bolt flange design allows for easy installation onto shafts or rails and offers additional mounting options, offering greater versatility in its application range.
Top product applications:
- Agricultural machinery: The tapered roller insert ensures durability even in harsh agricultural conditions, making this bearing ideal for various agricultural machineries such as combine harvesters or tractors.
- Food processing equipment: The 4-bolt flange mounting design allows easy installation onto food processing equipment like mixers or conveyor belts, making it suitable for use in environments with frequent maintenance and sanitation requirements.
- Heavy Industrial Machinery: The high load capacity of this bearing makes it an ideal choice for heavy industrial machines such as cranes, excavators or hoists, ensuring they run smoothly even when lifting significant weights.
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Tapered Roller
- Bore Dia. 1 1/2 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 4 1/8 in
- Series RFB
- Bolt Size 1/2 in
- Overall Height 5 3/8 in
- Overall Width 3 1/2 in
- Overall Length 5 3/8 in
- Bearing Lubrication Sealmaster GoldPlex-HP or NLGI #2 Equivalent
- Dynamic Load Capacity 6,140 lb
- Static Load Capacity 2,600 lb
- Temp. Range -20 Degrees to 220 Degrees F
- Finish Black Oxide
- Dimension A 3 1/2 in
- Dimension B 4 1/8 in
- Dimension C 2 15/16 in
- Dimension D 4 1/8 in
- Dimension E 1/8 in
- Dimension F 1/2 in
- Dimension G 1 3/16 in
- Dimension H 1 3/16 in
- Dimension J 4 1/2 in
- Dimension L 2 7/8 in
- Dimension M 4 1/2 in
- Dimension N 1 11/16 in
Manufacturer Details
- Manufacturer: Sealmaster
- Condensed Mfg Number: RFB108
- MPN: RFB 108
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
