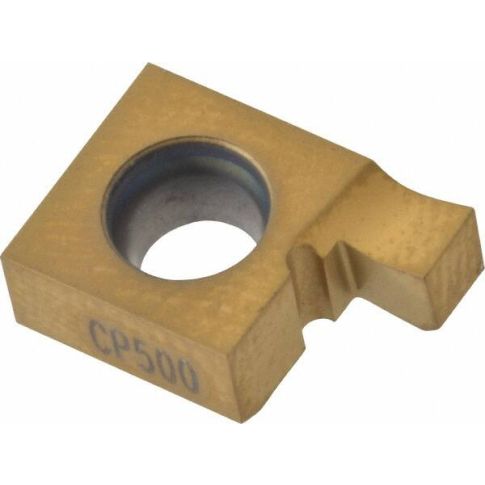

Grooving Insert: 9NL086FG CP500, Solid Carbide MPN:00077947
Grooving Insert: 9NL086FG CP500, Solid Carbide MPN:00077947 is available to buy in increments of 2
Grooving Insert: 9NL086FG CP500, Solid Carbide
Grooving Insert: 9NL086FG CP500, Solid Carbide TiAlN & TiN Finish, Left Hand, 0.086" Cutting Width, 0.086" Max Depth, Series Snap Tap
Product Information
- : 00077947
- Chip Breaker: FG
- Coating Process: PVD
- Coating/Finish: TiAlN; TiN
- Cutting Tool Application: Grooving
- Cutting Width (Decimal Inch): 0.0860
- Full Radius: No
- Inscribed Circle (Decimal Inch): 0.2500
- Inscribed Circle (Inch): 1/4
- Insert Hand: Left Hand
- Insert Holding Method: Clamp
- Insert Material: Solid Carbide
- Insert Seat Size: 9
- Insert Size: 086
- Insert Size Code: 9086
- Insert Style: 9NL
- Manufacturer Grade: CP500
- Material Grade: Micrograin
- Maximum Depth of Cut (Decimal Inch): 0.0860
- Maximum Depth of Cut Range (Decimal Inch): 0.0750 to 0.1000
- Multi-Use Tool: No
- Overall Length (Decimal Inch): 0.3543
- Overall Length (mm): 9.00
- Primary Workpiece Material: Universal
- Primary Workpiece Material Code: H; K; M; N; O; P; S
- Series: Snap Tap
- Standards: ISO
- Style: 9NL/NR .086FG
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: Yes
- Country of Origin: IN, India
- TAA Compliant: No
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.12
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 1:05am UTC
Category: Grooving Inserts
