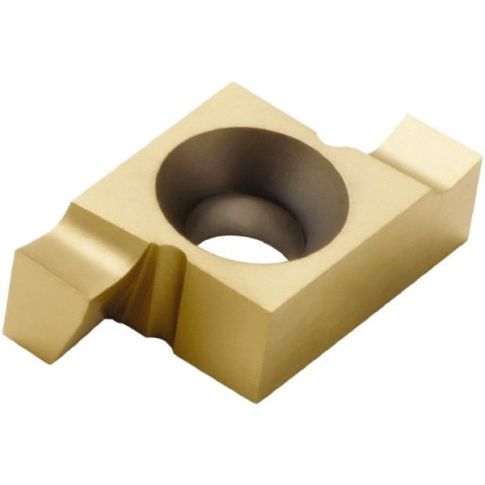

Grooving Insert: X4GK2503015FG CP500, Solid Carbide MPN:02902980
Grooving Insert: X4GK2503015FG CP500, Solid Carbide MPN:02902980 is available to buy in increments of 2
Grooving Insert: X4GK2503015FG CP500, Solid Carbide
Grooving Insert: X4GK2503015FG CP500, Solid Carbide TiAlN & TiN Finish, Right Hand, 2.15 mm Cutting Width, 6 mm Max Depth, Series X4
Product Information
- : 02902980
- Chip Breaker: FG
- Coating Process: PVD
- Coating/Finish: TiAlN; TiN
- Corner Radius (Decimal Inch): 0.0059
- Corner Radius (mm): 0.15
- Cutting Height (Decimal Inch): 0.8020
- Cutting Tool Application: Grooving
- Cutting Width (Decimal Inch): 0.0846
- Cutting Width (mm): 2.15
- External Relief Angle: 6
- Full Radius: No
- Insert Hand: Right Hand
- Insert Holding Method: Clamp
- Insert Material: Solid Carbide
- Insert Size: 2503015
- Insert Size Code: 25030150215
- Insert Style: X4GK
- Lead Angle: 0
- Manufacturer Grade: CP500
- Material Grade: Micrograin
- Maximum Depth of Cut (mm): 6.00
- Maximum Depth of Cut Range (mm): 5.00 to 10.00
- Multi-Use Tool: Yes
- Overall Length (mm): 25.00
- Overall Width (mm): 3.10
- Primary Workpiece Material: Universal
- Primary Workpiece Material Code: H; K; M; N; O; P; S
- Rake: Positive
- Rake Angle: 6.00
- Series: X4
- Single Or Double End: Double
- Standards: ISO
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Country of Origin: SE, Sweden
- TAA Compliant: Yes
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Length: 1.50
- Package Width: 3.57
- Package Height: 0.32
- Package Weight: 0.03
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 6:43am UTC
Category: Grooving Inserts
