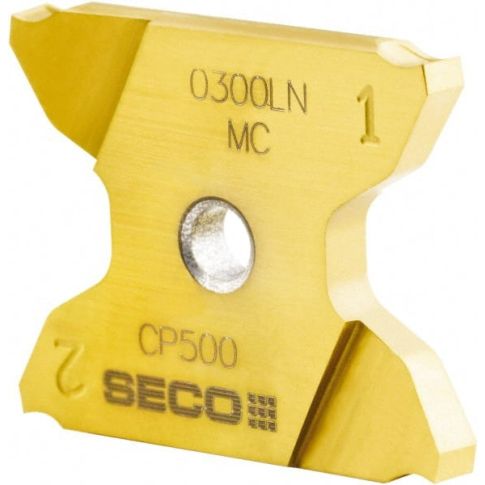

Grooving Insert: X4GKA2503019-A0062LNMC CP500, Solid Carbide MPN:02823046
Grooving Insert: X4GKA2503019-A0062LNMC CP500, Solid Carbide MPN:02823046 is available to buy in increments of 2
Grooving Insert: X4GKA2503019-A0062LNMC CP500, Solid Carbide
Grooving Insert: X4GKA2503019-A0062LNMC CP500, Solid Carbide TiAlN & TiN Finish, Left Hand, 0.062" Cutting Width, 0.256" Max Depth, Series X4
Product Information
- : 02823046
- Chip Breaker: MC
- Coating Process: PVD
- Coating/Finish: TiAlN; TiN
- Corner Radius (Decimal Inch): 0.0075
- Cutting Height (Decimal Inch): 0.8000
- Cutting Tool Application: Grooving
- Cutting Width (Decimal Inch): 0.0620
- Full Radius: No
- Insert Hand: Left Hand
- Insert Holding Method: Clamp
- Insert Material: Solid Carbide
- Insert Size: A2503019-A0062LN
- Insert Size Code: 25030190157
- Insert Style: X4GK
- Lead Angle: 0
- Manufacturer Grade: CP500
- Material Grade: Micrograin
- Maximum Depth of Cut (Decimal Inch): 0.2560
- Maximum Depth of Cut Range (Decimal Inch): 0.2000 to 0.3000
- Multi-Use Tool: Yes
- Overall Length (Decimal Inch): 1.0010
- Primary Workpiece Material: Universal
- Primary Workpiece Material Code: H; K; M; N; O; P; S
- Rake: Positive
- Rake Angle: 0.00
- Series: X4
- Single Or Double End: Double
- Standards: ISO
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Country of Origin: SE, Sweden
- TAA Compliant: Yes
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.02
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 1:05am UTC
Category: Grooving Inserts
