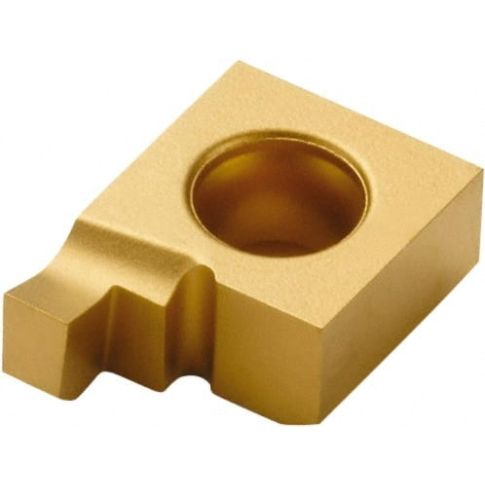

Grooving Insert: 9NR9135FG CP500, Solid Carbide MPN:00026728
Grooving Insert: 9NR9135FG CP500, Solid Carbide MPN:00026728 is available to buy in increments of 2
Grooving Insert: 9NR9135FG CP500, Solid Carbide
Grooving Insert: 9NR9135FG CP500, Solid Carbide TiAlN & TiN Finish, Right Hand, 1.35 mm Cutting Width, 1.35 mm Max Depth, Series Snap Tap
Product Information
- : 00026728
- Chip Breaker: FG
- Coating Process: PVD
- Coating/Finish: TiAlN; TiN
- Cutting Width (Decimal Inch): 0.0531
- Cutting Width (mm): 1.35
- Full Radius: No
- Inscribed Circle (Decimal Inch): 0.2500
- Inscribed Circle (mm): 6.35
- Insert Hand: Right Hand
- Insert Material: Solid Carbide
- Insert Seat Size: 9
- Insert Size: 9135
- Insert Style: 9NR
- Manufacturer Grade: CP500
- Material Grade: Micrograin
- Maximum Depth of Cut (Decimal Inch): 0.0531
- Maximum Depth of Cut (mm): 1.35
- Maximum Depth of Cut Range (Decimal Inch): 0.0000 to 0.0750
- Maximum Depth of Cut Range (mm): 0.00 to 2.00
- Multi-Use Tool: No
- Overall Length (Decimal Inch): 0.3543
- Overall Length (mm): 9.00
- Overall Width (Decimal Inch - 4 Decimals): 0.2500
- Overall Width (mm): 6.35
- Series: Snap Tap
- Single Or Double End: Single
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: IN, India
- TAA Compliant: No
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Length: 5.75
- Package Width: 1.93
- Package Height: 0.37
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 4:35am UTC
Category: Grooving Inserts
