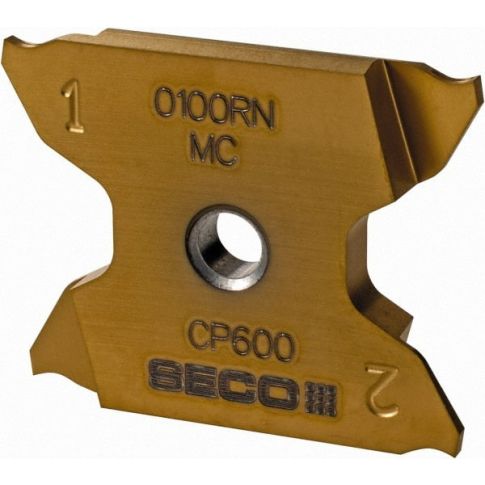

Grooving Insert: X4GK2503005MC CP600, Solid Carbide MPN:02822999
Grooving Insert: X4GK2503005MC CP600, Solid Carbide MPN:02822999 is available to buy in increments of 2
Grooving Insert: X4GK2503005MC CP600, Solid Carbide
Grooving Insert: X4GK2503005MC CP600, Solid Carbide TiAlN & TiN Finish, Neutral, 0.039" Cutting Width, 0.169" Max Depth, Series X4
Product Information
- : 02822999
- Chip Breaker: MC
- Coating Process: PVD
- Coating/Finish: TiAlN; TiN
- Corner Radius (Decimal Inch): 0.0020
- Cutting Height (Decimal Inch): 0.8000
- Cutting Tool Application: Grooving
- Cutting Width (Decimal Inch): 0.0390
- Full Radius: No
- Insert Hand: Neutral
- Insert Holding Method: Clamp
- Insert Material: Solid Carbide
- Insert Size: 2503005
- Insert Size Code: 25030050100
- Insert Style: X4GK
- Lead Angle: 0
- Manufacturer Grade: CP600
- Material Grade: Fine-Grained
- Maximum Depth of Cut (Decimal Inch): 0.1690
- Maximum Depth of Cut Range (Decimal Inch): 0.1500 to 0.2000
- Minimum Corner Radius (Decimal Inch): 0.0020
- Multi-Use Tool: Yes
- Overall Length (Decimal Inch): 1.0020
- Overall Width (Decimal Inch - 4 Decimals): 0.1180
- Primary Workpiece Material: Universal
- Primary Workpiece Material Code: H; K; M; N; O; P; S
- Rake: Neutral
- Rake Angle: 6.00
- Series: X4
- Single Or Double End: Double
- Standards: ISO
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Country of Origin: SE, Sweden
- TAA Compliant: Yes
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Length: 2.75
- Package Width: 6.00
- Package Height: 0.73
- Package Weight: 0.16
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 5:15am UTC
Category: Grooving Inserts
