Laydown Threading Insert: 16NL A60 CP500, Solid Carbide MPN:00050328
Laydown Threading Insert: 16NL A60 CP500, Solid Carbide MPN:00050328 is available to buy in increments of 2

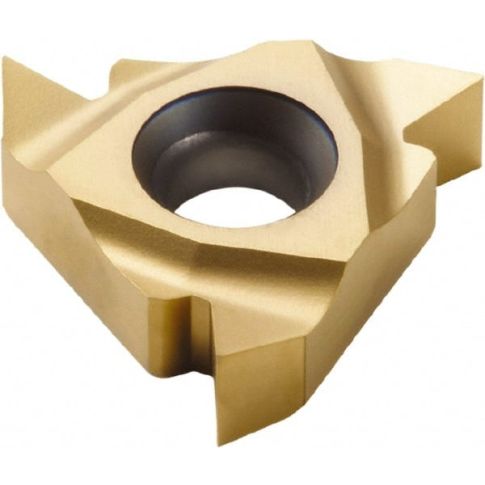

Laydown Threading Insert: 16NL A60 CP500, Solid Carbide
Laydown Threading Insert: 16NL A60 CP500, Solid Carbide TiAlN/TiN Finish, Left Hand Internal Partial Profile 60degree Thread, 48-16 TPI, 9.53mm Inscribed Circle, 3.47mm Thick
Product Information
- : 00050328
- Coating Process: PVD
- Coating/Finish: Coated
- Corner Radius (Decimal Inch): 0.0800
- Included Angle: 60
- Inscribed Circle (Decimal Inch): 0.3752
- Inscribed Circle (mm): 9.53
- Insert Hand: Left Hand
- Insert Material: Solid Carbide
- Insert Size Code: 16
- Insert Style: 16NL
- Manufacturer Grade: CP500
- Pitch (mm): 0.50 to 1.50
- Primary Workpiece Material: Universal
- Primary Workpiece Material Code: K; M; P; S
- Series: Snap Tap
- Standards: ISO
- Thickness (Decimal Inch - 4 Decimals): 0.1366
- Thickness (mm): 3.47
- Thread Type: Internal
- Threads Per Inch: 48-16
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: Yes
- Country of Origin: Coo Data Unavail
- TAA Compliant: No
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.12
- Prohibited States: AK,HI,PR
Product info last updated on July 1, 2024 12:53am UTC
Category: Threading and Thread Mill Inserts
