Laydown Threading Insert: 16EL8UN CP500, Solid Carbide MPN:00046765
Laydown Threading Insert: 16EL8UN CP500, Solid Carbide MPN:00046765 is available to buy in increments of 1

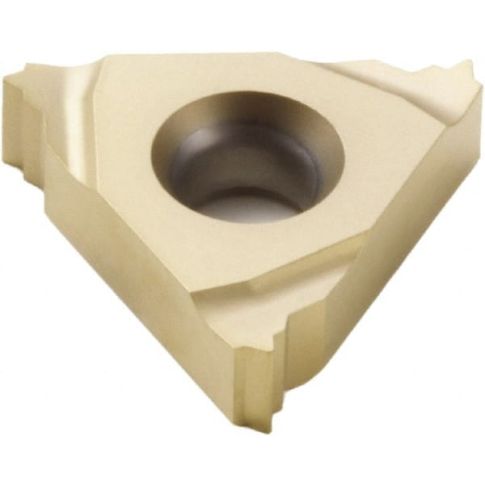

Laydown Threading Insert: 16EL8UN CP500, Solid Carbide
Laydown Threading Insert: 16EL8UN CP500, Solid Carbide TiAlN/TiN Finish, Left Hand External UN Thread, 8 TPI, 3/8" Inscribed Circle, 0.1366" Thick
Product Information
- : 00046765
- Coating Process: PVD
- Coating/Finish: Coated
- Corner Radius (Decimal Inch): 0.0170
- Included Angle: 60
- Inscribed Circle (Decimal Inch): 0.3750
- Inscribed Circle (Inch): 3/8
- Insert Hand: Left Hand
- Insert Material: Solid Carbide
- Insert Size Code: 16
- Insert Style: 16EL
- Manufacturer Grade: CP500
- Material Grade: Micrograin
- Primary Workpiece Material: Universal
- Primary Workpiece Material Code: K; M; N; P; S
- Series: Snap Tap
- Standards: ISO
- Thickness (Decimal Inch - 4 Decimals): 0.1366
- Thread Standard: UN
- Thread Type: External
- Threads Per Inch: 8
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Country of Origin: SE, Sweden
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.12
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 5:15am UTC
Category: Threading and Thread Mill Inserts
