Indexable Copy End Mill: 1-1/2" Cut Dia, 0.394" Max Depth of Cut, Through Coolant MPN:00054181

Discount: See in Cart
Free Shipping
In Stock
Brand: Seco
Part #: 00054181
SKU
310-74584715
$913.79

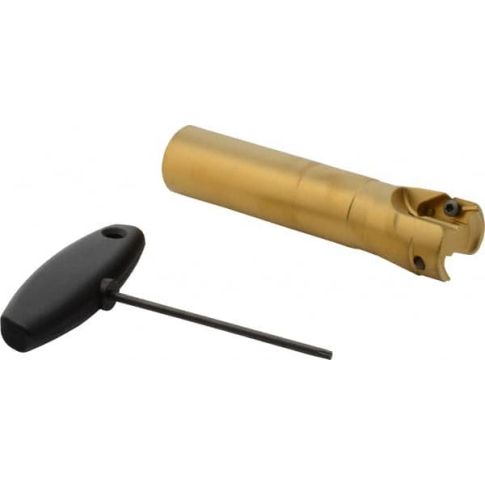

Indexable Copy End Mill: 1-1/2" Cut Dia, 0.394" Max Depth of Cut, Through Coolant

The indexable copy end mill is an advanced cutting tool designed for demanding applications that require precision, accuracy and speed such as machining, die making, or molding industries. With a robust construction of high-speed steel, this tool boasts a longer lifespan than traditional carbide-tipped cutters while maintaining sharp edges for smooth finishes. Featuring a 1-1/2 diameter and maximum depth of cut of 0.394, it delivers impressive cutting capabilities on various materials. It's suitable for CNC machines or manual lathes that use through coolant systems to minimize friction, heat buildup and extend the life of the tool further.

Indexable Copy End Mill: 1-1/2" Cut Dia, 0.394" Max Depth of Cut, Through Coolant Uses 2 VPGX 2206..E.-E10 Inserts, 1-1/4" Cylindrical Shank

Product Information

  • : 00054181
  • Compatible Insert Style: VPGX 2206..E.-E10
  • Coolant Through: Yes
  • Cutting Diameter (Decimal Inch): 1.5000
  • Cutting Diameter (Inch): 1-1/2
  • Functional Length (Decimal Inch): 3.6380
  • Head Length (Decimal Inch): 2.0000
  • Insert Holding Method: Screw
  • Manufacturers Catalog Number: False
  • Maximum Cutting Diameter (Decimal Inch): 1.5000
  • Maximum Cutting Diameter (Inch): 1-1/2
  • Maximum Depth of Cut (Decimal Inch): 0.3940
  • Maximum Rpm: 35000
  • Number of Cutter Inserts: 2
  • Number of Flutes: 2
  • Overall Length (Decimal Inch): 6.0000
  • Projection (Decimal Inch): 3.5400
  • Shank Diameter: 1.25in; 31.75mm
  • Shank Diameter (Decimal Inch): 1.2500
  • Shank Diameter (Inch): 1-1/4
  • Shank Diameter (mm): 31.75
  • Shank Length (Decimal Inch): 4.0000
  • Shank Type: Cylindrical
  • Tool Application: Milling
  • Toolholder Style: R217.97
  • Weldon Flat: No

Additional Information

  • Hazardous Materials: No, oK to Ship Via Air
  • Material Safety Data Sheet (MSDS) Required: Yes
  • Country of Origin: FR, France
  • TAA Compliant: Yes
  • UNSPSC: 27112803
  • CA Restricted (Prop 65): Unknown
  • Package Weight: 0.70
  • Prohibited States: AK,HI,PR
Product info last updated on July 16, 2024 12:02pm UTC Category: Indexable End Mills
