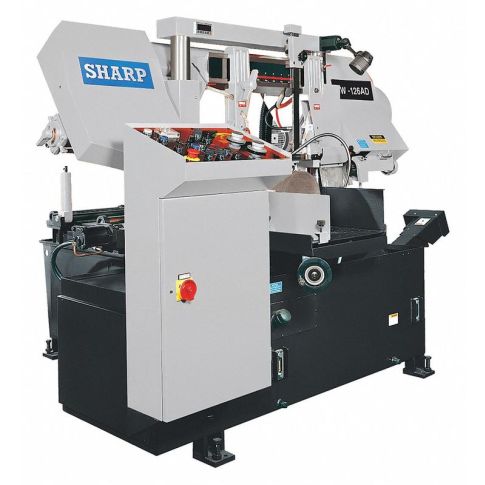

Band Saw Horizontal 50 to 330 SFPM MPN:SW-126AD

Non-mitering semi-automatic horizontal band saws make straight downward cuts in metal, pipe, conduit, and channel. Non-mitering saws provide better precision and repeatability when making straight cuts than mitering saws that have a pivoting head. Automatic band saws are programmed to feed and cut material repeatedly.

Technical Specifications

• Item Band Saw
• Band Saw Type Horizontal
• Band Saw Operation Automatic
• Voltage 220V AC
• Phase 3
• Rectangular Cutting Capacity - Horizontal 15 in x 12-9/16 in
• Round Cutting Capacity - Horizontal 12 5/8 in
• SFPM Range 50 to 330
• Miter Angle Range 0 Degrees
• Number of Speed Settings Continuous
• Material Application Metal
• Blade Length 13 ft 11 in
• Cutting Capacity Square 7 in
• Power Source Corded
• Blade Wheels Dia. 17 in
• Amps AC 17.0
• Hz 60
• HP 5 hp
• Includes Bi-Metal Saw Blade, Double Retracting Vise, Flushing Hose, Full Stroke Cylinder, Leveling Pad, Tool Box, Wire Brush, Work Light
• Max. Blade Length 100 3/4 in
• Overall Depth 79 in
• Overall Height 78 in
• Overall Width 79 in
• Features Auto Hydraulic Blade Tension, Blade Speed, Digital Display Cutting Length, Double Column Arm Offers More Powerful, Easy Switch for Bundle or Single Work, Hydraulic Front and Rear Vises, Hydraulic Shuttle Vise for Handling Heavy Load, PLC Control of Hydraulic and Electrical System, Precision Feed Rate and Feed Pressure, Smooth and Accurate Cutting, Split Vise Jaws Holds Work At Both Sides of Blade, Variable Blade Speed
• Current 17.0

Manufacturer Details

• Manufacturer: Sharp
• Condensed Mfg Number: SW126AD
• MPN: SW-126AD

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: TW
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8461500090
• GDS Category Name: Stationary Band Saws
• GDS Family Name: Power Saws and Accessories
• GDS Segment Name: Power Tools
• UNSPSC: 27112709
• UNSPSC Class ID: 27
• UNSPSC Commodity Name: Power tools
• UNSPSC Commodity ID: 09
• UNSPSC Commodity Name: Power saws
• UNSPSC Family ID: 11
• UNSPSC Family Name: Hand tools
• UNSPSC Segment ID: 27
• UNSPSC Segment Name: Tools and General Machinery

Shipping Details

• Not For Sale In: HI AK PR
