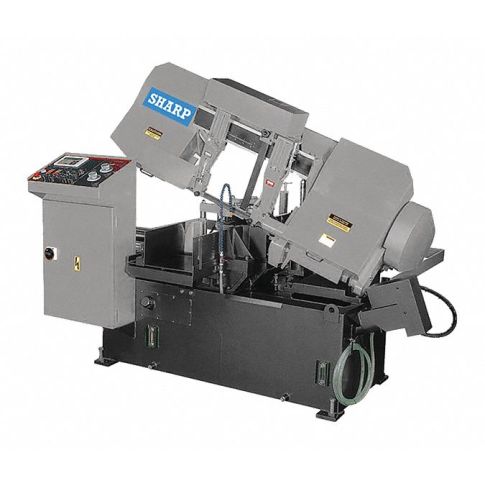

Band Saw Horizontal 66 to 328 SFPM MPN:SW-100NC

Non-mitering semi-automatic horizontal band saws make straight downward cuts in metal, pipe, conduit, and channel. Non-mitering saws provide better precision and repeatability when making straight cuts than mitering saws that have a pivoting head. Semi-automatic band saws are programmed by the operator to make the cut after the operator places and clamps the workpiece in place.

Technical Specifications

• Item Band Saw
• Band Saw Type Horizontal
• Band Saw Operation Semi-Automatic
• Voltage 220V AC
• Phase 3
• Rectangular Cutting Capacity - Horizontal 10-3/16 in x 11-13/16 in
• Round Cutting Capacity - Horizontal 10 1/4 in
• SFPM Range 66 to 328
• Miter Angle Range 0 Degrees
• Number of Speed Settings Continuous
• Material Application Metal
• Blade Length 11 ft 6 in
• Max. Blade Width 1 5/16 in
• Cutting Capacity Square 7 in
• Power Source Corded
• Blade Wheels Dia. 16 in
• Amps AC 17.0
• Hz 60
• HP 5 hp
• Includes Bi-Metal Saw Blade, Double Retracting Vise, Flushing Hose, Full Stroke Cylinder, Leveling Pad, Tool Box, Wire Brush, Work Light
• Max. Blade Length 138 in
• Overall Depth 85 in
• Overall Height 60 in
• Overall Width 77 in
• Features Auto Kerf Loss Compensation, Auto Shut Down, Display Blade Speed, Feed Pressure, Feed Rate Selection, Feed Vise Position, Material Length, Programmable Touch Screen Control of Input Quantity, Work Height
• Current 17.0

Manufacturer Details

• Manufacturer: Sharp
• Condensed Mfg Number: SW100NC
• MPN: SW-100NC

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: TW
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8461500090
• GDS Category Name: Stationary Band Saws
• GDS Family Name: Power Saws and Accessories
• GDS Segment Name: Power Tools
• UNSPSC: 27112709
• UNSPSC Class ID: 27
• UNSPSC Commodity Name: Power tools
• UNSPSC Commodity ID: 09
• UNSPSC Commodity Name: Power saws
• UNSPSC Family ID: 11
• UNSPSC Family Name: Hand tools
• UNSPSC Segment ID: 27
• UNSPSC Segment Name: Tools and General Machinery

Shipping Details

• Not For Sale In: HI AK PR
