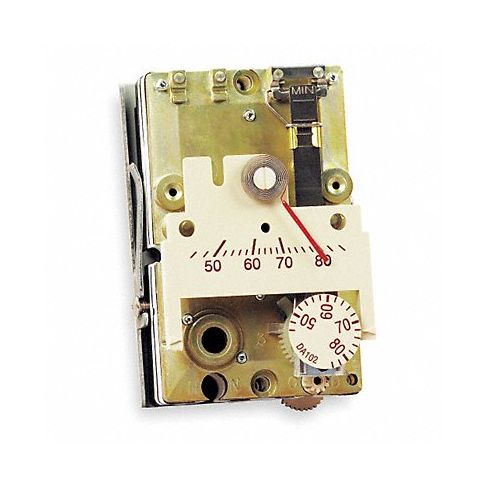

Pneumatic Tstat Heat or Cool 2Pipe High MPN:192-203

2-pipe thermostat provides proportional single-output pneumatic valve and damper actuator control in large-volume heating and cooling applications. The built-in field-adjustable limit stops let you make adjustments on the fly, while the test port allows fast check of output pressure without removing the cover (cover not included). Included wall plate and screws let you connect to a variety of rough-in boxes.

Technical Specifications

• Item Pneumatic Thermostat
• Action Type Reverse Acting
• No. of Pipes 2 Pipe
• Thermostat Application Heating and Cooling
• Temperature Output Settings Single Temperature
• Control Air Pressure 3 to 15 psi
• Air Connections 5/32 in Barb
• Element Type Bi-Metal
• Max. Air Pressure 30 psi
• Max. Ambient Temp. 140 Degrees F
• Mounting Style Vertical
• Height 3 3/8 in
• Width 2 1/8 in
• Depth 1 5/8 in
• Temp. Control Range 45 Degrees to 85 Degrees F
• Air Consumption 20 scim
• Throttling Range 3 to 15 psi
• Includes Wallplate and Screws

Manufacturer Details

• Manufacturer: Siemens
• Condensed Mfg Number: 192203
• MPN: 192-203

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9032100030
• GDS Category Name: Pneumatic Mechanical Thermostats
• GDS Family Name: HVAC Controls and Thermostats
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 41112209
• UNSPSC Class ID: 22
• UNSPSC Commodity Name: Temperature and heat measuring instruments
• UNSPSC Commodity ID: 09
• UNSPSC Commodity Name: Thermostats
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
