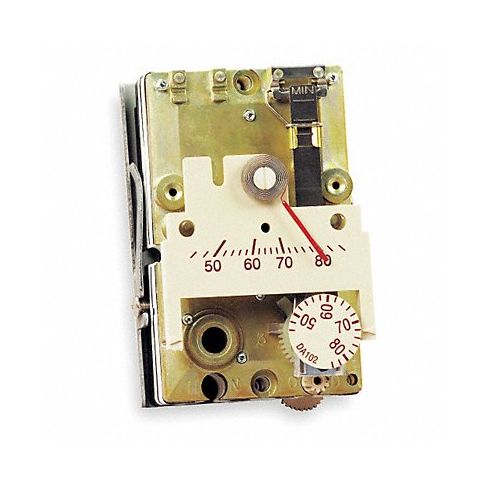

Pneumatic Tstat Retrofit Kit H/C F/C MPN:194-3083
Pneumatic Tstat Retrofit Kit H/C F/C
This 2-pipe thermostat can be installed to replace outdated thermostats—of just about any brand—to provide proportional pneumatic valve and damper actuator control in large-volume heating and cooling applications. The dual-output design provides what is essentially 2 thermostats in one: one for heating and one for cooling, for outstanding flexibility and control. A test port allows fast check of output pressure without removing the cover (cover not included). Included wall plate and screws let you connect to a variety of rough-in boxes.
Technical Specifications
- Item Pneumatic Thermostat
- Action Type Direct Acting and Reverse Acting
- No. of Pipes 2 Pipe
- Thermostat Application Heating and Cooling
- Temperature Output Settings Dual Temperature
- Control Air Pressure 15 to 30 psi
- Air Connections 5/32 in Barb
- Element Type Bi-Metal
- Max. Air Pressure 30 psi
- Max. Ambient Temp. 140 Degrees F
- Mounting Style Vertical
- Height 3 3/8 in
- Width 2 1/8 in
- Depth 1 5/8 in
- Temp. Control Range 45 Degrees to 85 Degrees F
- Air Consumption 20 scfm
- Throttling Range 3 to 15 psi
- Includes Cover, Mounting, Tubing Adapter, Wallplate, and Screws
Manufacturer Details
- Manufacturer: Siemens
- Condensed Mfg Number: 1943083
- MPN: 194-3083
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9032100030
- GDS Category Name: Pneumatic Mechanical Thermostat Retrofit Kits
- GDS Family Name: HVAC Controls and Thermostats
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 41112209
- UNSPSC Class ID: 22
- UNSPSC Commodity Name: Temperature and heat measuring instruments
- UNSPSC Commodity ID: 09
- UNSPSC Commodity Name: Thermostats
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
