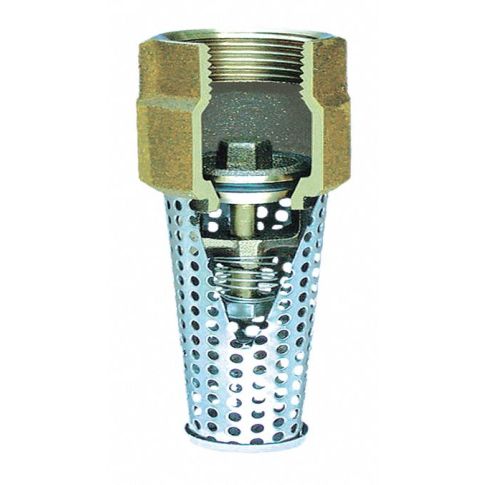

Foot Valve 2 Size NPT 3-1/2 L 3-1/2 W MPN:457SB
The Foot Valve is designed to fit standard 2-inch water systems and is suitable for clean applications that require minimal pressure. Its NPT connection provides easy installation and removal for maintenance purposes while ensuring durability and dependable performance over time. With its wide inlet design, it offers increased flow capacity, making it ideal for use in irrigation, lawn sprinkler systems, pump installations, and water supply applications where consistent water flow is critical. The foot valve's compact size makes it suitable for both above-ground and buried applications, reducing the risk of clogs or damage from nearby structures. It also includes rubber gaskets to prevent leaks, ensuring a secure seal against contamination while providing reliable operation for years without corrosion or degradation in the harshest environments.
Technical Specifications
- Item - Foot Valves Foot Valve
- Flow Design Single
- Design Spring
- Application - Valves Pumps
- Valve Body Design Inline
- Body Material - Valves Bronze
- Strainer Material Stainless Steel
- Pipe or Tube Size - Valves 2 in
- Connection Type - Valves FNPT x FNPT
- Max. Steam Pressure - Valves 400 psi WSP
- Max. Water Pressure - Valves 400 psi
- Cracking Pressure - Valves 2.0 psi
- Max. Temp. - Valves 190 Degrees F
- Mounting Orientation - Valves Horizontal, Vertical
- Seat Material - Valves Bronze
- Spring Material Stainless Steel
- Seal Material - Valves Buna-N
- Length 3 1/2 in
- Width 3 1/2 in
- Overall Height 7 3/16 in
- Cap to Inlet Center 1 1/2 in
- Standards NSF 372, 61 Certified
Manufacturer Details
- Manufacturer: Simmons
- Condensed Mfg Number: 457SB
- MPN: 457SB
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8481301090
- GDS Category Name: Foot Valves
- GDS Family Name: Check Valves and Backflow Preventers
- GDS Segment Name: Plumbing
- UNSPSC: 40141622
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Valves
- UNSPSC Commodity ID: 22
- UNSPSC Commodity Name: Inline check valves
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
