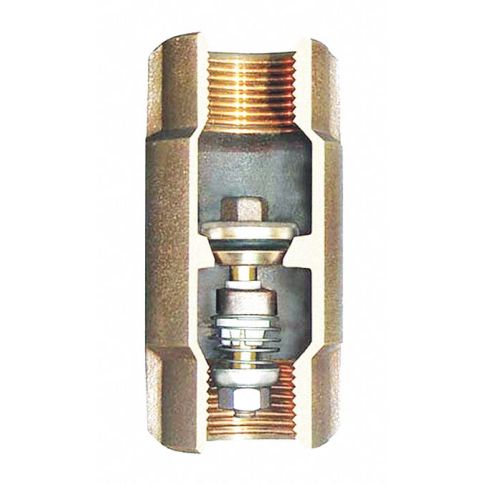

Spring Check Valve Bronze 1-1/2 FNPT MPN:505SB
The bronze spring check valve is suitable for use in a wide range of applications including water treatment, commercial plumbing, heating, ventilating systems requiring unidirectional flow thus preventing backflow; it features a non-slam design, reducing vibration or noise while ensuring smooth operation in dynamic environments; this check valve's lightweight and cost-efficient bronze construction ensures durability while withstanding the elements. Additionally, its FNPT female threads make installation seamless, while its 1-1/2-inch diameter ensures compatibility within a broad range of pipe sizes, making it ideal for plumbers or mechanical engineers looking to safeguard their systems from damaging backflow in various industries such as water treatment plants, irrigation systems, or municipal plumbing networks.
Technical Specifications
- Item - Check Valves Check Valve
- Flow Design Single
- Mechanism and Body Design Inline Spring
- Body Material - Valves Bronze
- Pipe or Tube Size 1 1/2 in
- Connection Type FNPT x FNPT
- Cracking Pressure 1.0 psi
- Mounting Orientation Horizontal, Vertical
- Seal Material Buna-N
- Max. Temp. - Valves 190 Degrees F
- Max. Water Pressure - Valves 400 psi
- Max. Steam Pressure - Valves Not Rated
- Seat Material Bronze
- Spring Material Stainless Steel
- Application - Valves General Purpose
- Length 2 5/8 in
- Width 2 5/8 in
- Overall Height 4 1/8 in
- Cap to Inlet Center 1 1/2 in
- Hex Size 2 5/8 in
- Standards Certified Lead Free, NSF 61, NSF/ANSI 372
Manufacturer Details
- Manufacturer: Simmons
- Condensed Mfg Number: 505SB
- MPN: 505SB
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8481301010
- GDS Category Name: Check Valves
- GDS Family Name: Check Valves and Backflow Preventers
- GDS Segment Name: Plumbing
- UNSPSC: 40141622
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Valves
- UNSPSC Commodity ID: 22
- UNSPSC Commodity Name: Inline check valves
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
