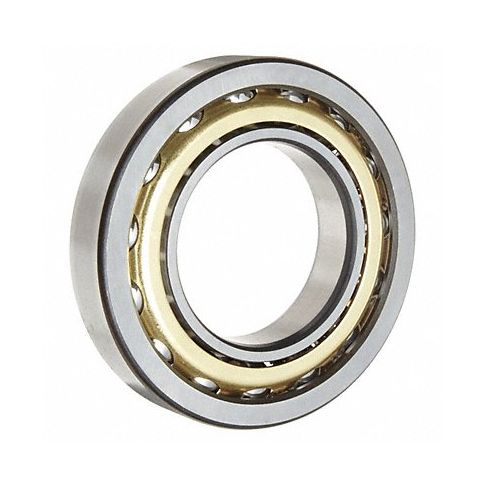

Angular Bearing 7213 40 Deg 65 mm Bore MPN:7213 BECBM
The Angular Bearing 7213 40 Deg 65 mm Bore from SKF is a top-performing bearing designed for precision control and durability in mechanical applications. This single row standard angular contact ball bearing features a contact angle of 40 degrees, a bore diameter of 65 mm, an outside diameter of 120 mm, and a width of 50 mm. The SKF Angular Bearing 7213 offers high rigidity, reduced friction, excellent self-aligning capabilities, and extended service life, making it suitable for use in various industries, including machinery, construction equipment, automotive, aerospace, agriculture, and energy production. Its ability to accommodate axial and radial loads make it ideal for applications requiring high speed, high accuracy, and high load carrying capacity. By investing in SKF's Angular Bearing 7213, you can ensure smooth operation, reduced downtime, and increased productivity in your business.
Top product features:
- High rigidity: Provides greater stability and reduces deflection in heavy-duty applications.
- Reduced friction: Leads to less wear and longer bearing life, lowering maintenance costs and downtime.
- Self-aligning capabilities: Allows the bearing to accommodate minor misalignments, offering enhanced accuracy and performance.
Top product applications:
- Machinery: Used in various industrial machinery that requires high speed and precision movement.
- Construction equipment: Utilized in construction vehicles such as excavators and cranes for precise movements.
- Automotive: Installed in automotive transmissions to provide smooth gear shifts and increased performance.
Technical Specifications
- Item Angular Contact Ball Bearing
- Type Single Row Standard
- Contact Angle (Degree) 40
- Bore Dia. 65 mm
- Outside Dia. 120 mm
- Width 23 mm
- Standard Preload (lbs.) 86
- Standard Preload (N) 380
- Max. RPM 6,700 RPM
- Dynamic Load Capacity (Lb.) 14,900
- Dynamic Load Capacity (N) 66,300
- Static Load Capacity (Lb.) 12,100
- Static Load Capacity (N) 54,000
- ABEC Tolerance 3
- Temp. Range (F) -40 Degrees to 212 Degrees
- Cage Material Machined Brass
- Lubrication MT47 Grease
Manufacturer Details
- Manufacturer: SKF
- Condensed Mfg Number: 7213BECBM
- MPN: 7213 BECBM
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105028
- GDS Category Name: Angular Contact and Precision Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
