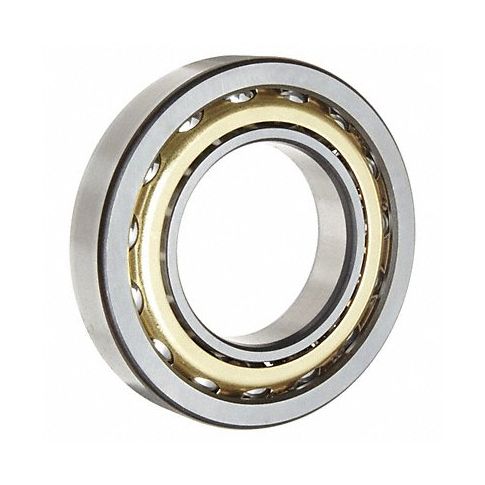

Angular Bearing 7317 40 Deg 85 mm Bore MPN:7317 BECBM
The SKF Angular Bearing 7317 40 Deg 85 mm Bore is a premium-quality bearing designed for high-performance applications in a variety of industries. Featuring an optimized design and exceptional build quality, this bearing offers unmatched reliability and longevity. Its 40-degree contact angle provides superior load distribution and reduces friction, while its 85 mm bore ensures a tight fit and easy installation. This bearing is ideal for use in applications where high speeds, heavy loads, and precise movements are required, making it an excellent choice for industries such as manufacturing, machinery, construction, and transportation. Its durable design and outstanding performance make the SKF Angular Bearing 7317 40 Deg 85 mm Bore the perfect choice for any operation that demands reliable and efficient performance.
Top product features:
- Superior load distribution: Provides even weight distribution and reduces friction.
- Tight fit and easy installation: Ensures that it fits well and is easy to put in place.
- Outstanding performance: Offers reliable and efficient operation in high-performance applications.
Top product applications:
- Here are three potential applications for the SKF Angular Bearing 7317 40 Deg 85 mm Bore:
- 1. Use in heavy machinery and equipment that require high loads, precision, and robustness.
- 2. Application in wind turbine generators or solar panels for smooth and efficient rotation.
Technical Specifications
- Item Angular Contact Ball Bearing
- Type Single Row Explorer
- Contact Angle (Degree) 40
- Bore Dia. 85 mm
- Outside Dia. 180 mm
- Width 41 mm
- Standard Preload (lbs.) 92
- Standard Preload (N) 410
- Max. RPM 4,800 RPM
- Dynamic Load Capacity (Lb.) 35,100
- Dynamic Load Capacity (N) 156,000
- Static Load Capacity (Lb.) 29,700
- Static Load Capacity (N) 132,000
- ABEC Tolerance 3
- Temp. Range (F) -40 Degrees to 212 Degrees
- Cage Material Machined Brass
- Lubrication MT47 Grease
Manufacturer Details
- Manufacturer: SKF
- Condensed Mfg Number: 7317BECBM
- MPN: 7317 BECBM
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105028
- GDS Category Name: Angular Contact and Precision Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on October 13, 2023 5:37pm UTC Category: Bearings
