Self-Aligning Ball Brg 1206 30mm Bore MPN:1206 ETN9

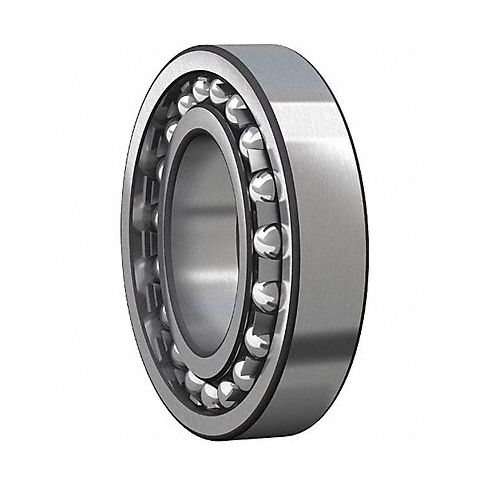

Self-Aligning Ball Brg 1206 30mm Bore
Our double-row self-aligning ball bearing provides superior performance in precision power transmission applications requiring radial alignment and low friction. With a bore diameter of 30mm, this bearings features stainless steel balls for durability and resilience against wear and corrosion. It is perfect for use in robotics, automotive, marine, aerospace and industrial equipment. The self-aligning design minimizes stress on the inner and outer rings while reducing misalignment errors caused by shaft deflection or housing irregularities. This bearing helps reduce noise and vibration while extending the life of your machinery. Choose this high-quality bearing for your next power transmission project to achieve outstanding results.
Top product features:
- Double row alignment for precision power transmission
- Stainless steel balls for durability and resilience against wear and corrosion
- Self-aligning design for reduced misalignment errors caused by shaft deflection or housing irregularities
Top product applications:
- Robotics applications that require precise radial alignment
- Automotive transmissions and differentials for improved load distribution
- Marine and aerospace equipment for extended service life under extreme conditions
This radial ball bearing features double-row alignment.
Technical Specifications
- Item Radial Ball Bearing
- Unmounted Bearing Item Radial Ball Bearing
- Single Row/Double Row Double Row
- Seal/Shield Type Open
- Bore Dia. 30 mm
- Bore Tolerance +0/-.010mm
- Outside Dia. 62 mm
- Outside Dia. Tolerance +0/-.013mm
- Width 16 mm
- ABEC Tolerance 1
- Dynamic Load Capacity 3,510 lb
- Static Load Capacity 1,050 lb
- Max. Load Axial 323 lb
- Max. RPM 15,000 RPM
- Temp. Range -40 Degrees to 210 Degrees F
- Bearing Material Steel
- Cage Material PA66
- Lubrication Shell Alvania Grease
- Industry Number 1206-ETN9
Manufacturer Details
- Manufacturer: SKF
- Condensed Mfg Number: 1206ETN9
- MPN: 1206 ETN9
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105060
- GDS Category Name: Self-Aligning Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:00pm UTC
