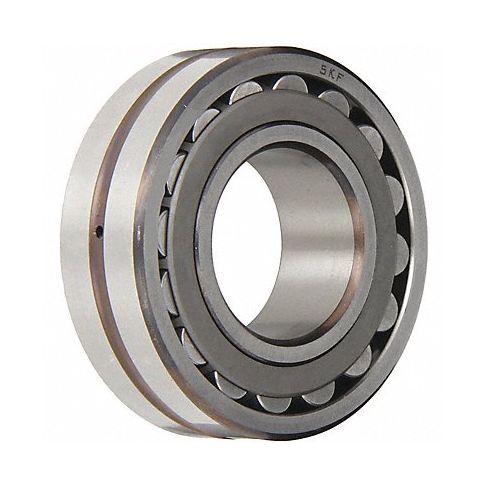

Roller Bearing Sphere 21306 30mm Bore MPN:21306 CC/C3
Introducing the Spherical Roller Bearing with bearing number 21306 CC/C3 from SKF - a superior performing double row spherical roller bearing designed for high load carrying capacity and excellent running performance. The 21306 CC/C3 comes equipped with two rows of symmetrical rollers, a highly rigid outer ring, and an inner ring which can rotate freely around its own axis, allowing the bearings to support radial loads, heavy axial loads, and combined loads simultaneously. With a bore diameter of 1.1811 and an outside diameter of 2.8346, this SKF spherical roller bearing is suitable for various industrial applications including construction and agricultural machinery, pumps and compressors, conveyors, gearboxes, and more. Its use in heavy-duty equipment ensures a reliable and durable performance even under extreme conditions. With its enhanced properties, the 21306 CC/C3 from SKF is a must-have for all industrial applications that require high load bearing capacity, precision, and long-lasting performance.
Top product features:
- Double row design for increased load capacity
- High rigidity and precision accuracy for smooth running performance
- Free-rotating inner ring allows for axial displacement without affecting the fixed ring's alignment
Top product applications:
- Heavy machinery, such as construction and agricultural equipment, requiring high load capacity and precision accuracy
- Pumps and compressors in industries that demand smooth running performance with resistance to harsh conditions and dusty environments
- Gearboxes and couplings where free-rotating inner rings enable axial displacement without affecting fixed ring alignment
Technical Specifications
- Item Spherical Roller Bearing
- Type Double Row
- Bore Dia. (In.) 1.1811 in
- Bore Dia. (mm) 30 mm
- Outside Dia. (In.) 2.8346 in
- Outside Dia. (mm) 72 mm
- Width (In.) 0.748 in
- Width (mm) 19 mm
- Dynamic Load Capacity (Lb.) 12,400 lb
- Dynamic Load Capacity (N) 55,200 N
- Static Load Capacity (Lb.) 13,700 lb
- Static Load Capacity (N) 61,000 N
- Temp. Range (F) 0 Degrees to 392 Degrees F
- Cage Material Sheet Metal
- Lubrication Grease
Manufacturer Details
- Manufacturer: SKF
- Condensed Mfg Number: 21306CCC3
- MPN: 21306 CC/C3
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Spherical Roller Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171505
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 05
- UNSPSC Commodity Name: Roller bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
