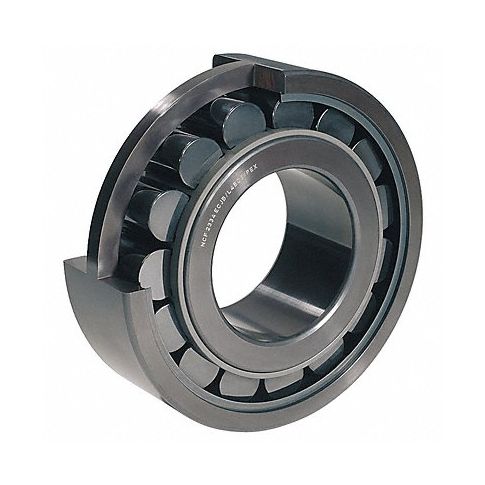

Cylindrical Roller Brg 209 45 mm Bore MPN:NU 209 ECP
Cylindrical Roller Brg 209 45 mm Bore
Introducing the SKF Cylindrical Roller Bearing NU 209 ECP with a bore diameter of 45 mm and an outside diameter of 85. This bearing is perfect for high load capacity applications that require durability and precision. The open design allows for easy installation and maintenance while the precise tolerance of +0/-0.012mm ensures smooth operation. With its chrome steel construction, this bearing can withstand harsh environments and provide long-lasting performance. Whether you're using it in cranes, excavators or other heavy equipment, the SKF Cylindrical Roller Bearing NU 209 ECP is the perfect choice for your needs. Order yours today and experience the power of precision! Power Transmission
Top product features:
- Chrome steel construction for durability and resistance to harsh environments
- Open design for easy installation and maintenance
- Precise tolerance of +0/-0.012mm for smooth operation
Top product applications:
- Heavy-duty machinery like cranes and excavators
- Mining and construction equipment
- Agricultural and forestry machines
⛟ Always get free shipping and support Veteran owned businesses by shopping our huge selection of Hardware Accessories including SKF item #NU 209 ECP.
Technical Specifications
- Item Cylindrical Roller Bearing
- Type Open
- Bore Dia. 45 mm
- Tolerance +0/-.012mm
- Outside Dia. 85
- Outside Dia. Tolerance +0/-.015mm
- Width 19 mm
- Fillet Radii (In.) 0.0433 in
- Fillet Radii (mm) 1.1 mm
- Outer Ring Inside Dia. (In.) 2.874 in
- Outer Ring Inside Dia. (mm) 73 mm
- Inner Ring Outside Dia. (In.) 2.323 in
- Inner Ring Outside Dia. (mm) 59 mm
- Shoulder Height (In.) 3.0709 in
- Shoulder Height (mm) 78 mm
- Dynamic Load Capacity (Lb.) 15,600 lb
- Static Load Capacity (Lb.) 14,400 lb
- Temp. Range (F) -40 Degrees to 205 Degrees F
- Cage Material Polyamide
- Roller Material Steel
Manufacturer Details
- Manufacturer: SKF
- Condensed Mfg Number: NU209ECP
- MPN: NU 209 ECP
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482500000
- GDS Category Name: Cylindrical Roller Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171505
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 05
- UNSPSC Commodity Name: Roller bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:44am UTC
Category: Bearings
