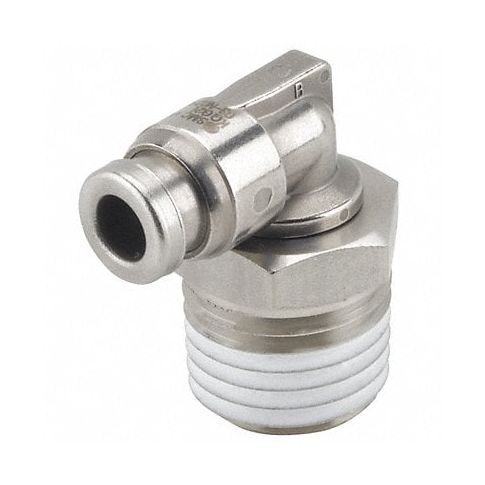

90 Deg Elbow Thread 1/8 In Tube 5/16 In. MPN:KQG2L08-01S
The 90-degree elbow tube fitting is essential in various industries such as plumbing, mechanical, automotive, and gas lines where it serves to connect a tube to another tube or a component at an angled position of 90 degrees. It consists of a smooth internal surface with threads at both ends that allow for easy connection via either screwing, compression, or welding techniques to create a tight seal that prevents leakage under pressure. Its corrosion-resistant material makes it suitable for carrying different liquids such as oil, water, air, and gas in various temperature conditions and chemical environments where its ability to bend or turn the direction of flow allows for greater flexibility and precision in designing complex systems while providing long-lasting durability.
Technical Specifications
- Item Male Elbow, 90 Degrees
- Tube Fitting Material 316 Stainless Steel
- Fitting Connection Type Tube x R(PT)
- Pipe Size - Pipe Fitting 1/8 in
- Tube Size 5/16 in
- Max. Pressure 435 psi
- Color Steel
- Temp. Range 23 Degrees to 302 Degrees F
- Hex Size 12 mm
- Standards RoHS
Manufacturer Details
- Manufacturer: SMC
- Condensed Mfg Number: KQG2L0801S
- MPN: KQG2L08-01S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: JP
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7307290090
- GDS Category Name: Push-Fit Couplings Adapters Unions and Elbows
- GDS Family Name: Tube Fittings
- GDS Segment Name: Plumbing
- UNSPSC: 40142604
- UNSPSC Class ID: 26
- UNSPSC Commodity Name: Tube fittings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Tube elbows
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
