SMT 5208ZZ Double Row Angular Contact Ball Bearing Double Shielded OD 80mm Bore 40mm Metric 5208ZZ
SMT 5208ZZ Double Row Angular Contact Ball Bearing Double Shielded OD 80mm Bore 40mm Metric 5208ZZ
This item is NOT returnable.
This item is NOT cancellable.

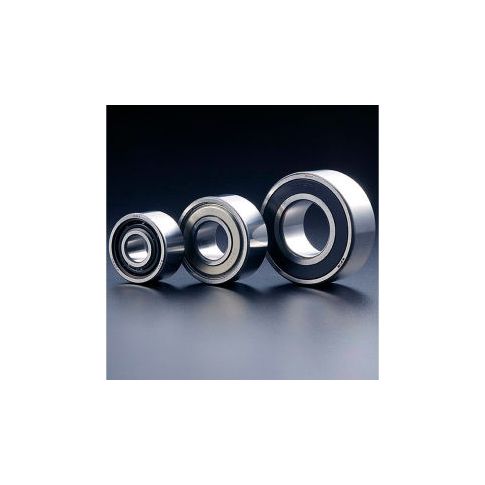

SMT 5208ZZ Double Row Angular Contact Ball Bearing, Double Shielded, OD 80mm, Bore 40mm, Metric
SMT 5200 series Double Row Angular Contact Ball Bearings consist of two single row angular contact ball bearings matched Back to Back arrangement, with inner and outer rings integrated. These bearings have the same bores and outside diameters as the corresponding bearings, 6200 series. SMT 5200 series are suitable for increased axial and radial rigidity in applications that design limits space. The contact angle is 30 degree inverted outside.
SMT 5200 series Double Row Angular Contact Ball Bearings consist of two single row angular contact ball bearings matched Back to Back arrangement, with inner and outer rings integrated. These bearings have the same bores and outside diameters as the corresponding bearings, 6200 series. SMT 5200 series are suitable for increased axial and radial rigidity in applications that design limits space. The contact angle is 30 degree inverted outside.
Product Specifications
- BRANDSMT
- BORE DIAMETER MILLIMETERS40
- OUTER DIAMETER MILLIMETERS80
- WIDTH MILLIMETERS30.2
- DYNAMIC LOAD RATING (N)42700
- STATIC LOAD RATING (N)32400
- GREASE RPM5000
- CAGE MATERIALCarbon Steel
- HOUSING CORNER RADIUS MAX (mm)1.1
- CONTACT ANGLE30
- BEARING TYPEDouble Shielded
- LUBRICATION TYPEShell Alvania S2, Prepacked
- TOLERANCEISO Normal
- MANUFACTURERS PART NUMBER5208ZZ
- OPERATING TEMPERATURE-13 to 248°F
- SHAFT FILLET CORNER RADIUS MAX (mm)1.1
Additional Information
- UNSPSC: 31171531
- Brand: Smt
- Package Quantity: 1
- Country of Origin: JP
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 3.23
- Package Width: 3.23
- Package Height: 1.27
- Package Weight: 1.34
Product info last updated on May 28, 2024 1:50pm UTC
Category: Bearings
