SMT 5201ZZ Double Row Angular Contact Ball Bearing Double Shielded OD 32mm Bore 12mm Metric 5201ZZ
SMT 5201ZZ Double Row Angular Contact Ball Bearing Double Shielded OD 32mm Bore 12mm Metric 5201ZZ
This item is NOT returnable.
This item is NOT cancellable.

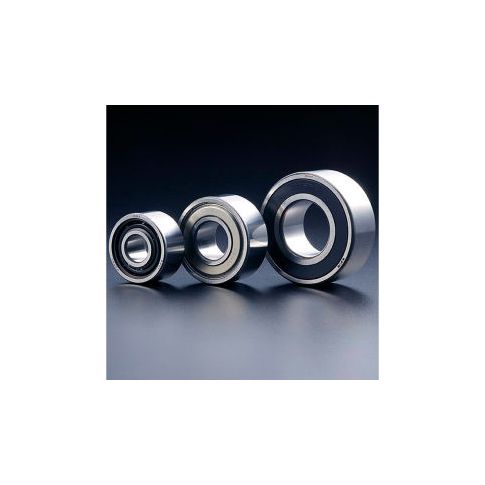

SMT 5201ZZ Double Row Angular Contact Ball Bearing, Double Shielded, OD 32mm, Bore 12mm, Metric
SMT 5200 series Double Row Angular Contact Ball Bearings consist of two single row angular contact ball bearings matched Back to Back arrangement, with inner and outer rings integrated. These bearings have the same bores and outside diameters as the corresponding bearings, 6200 series. SMT 5200 series are suitable for increased axial and radial rigidity in applications that design limits space. The contact angle is 30 degree inverted outside.
SMT 5200 series Double Row Angular Contact Ball Bearings consist of two single row angular contact ball bearings matched Back to Back arrangement, with inner and outer rings integrated. These bearings have the same bores and outside diameters as the corresponding bearings, 6200 series. SMT 5200 series are suitable for increased axial and radial rigidity in applications that design limits space. The contact angle is 30 degree inverted outside.
Product Specifications
- BRANDSMT
- BORE DIAMETER MILLIMETERS12
- OUTER DIAMETER MILLIMETERS32
- WIDTH MILLIMETERS15.9
- DYNAMIC LOAD RATING (N)9150
- STATIC LOAD RATING (N)5050
- GREASE RPM14000
- CAGE MATERIALCarbon Steel
- HOUSING CORNER RADIUS MAX (mm)0.6
- CONTACT ANGLE30
- BEARING TYPEDouble Shielded
- LUBRICATION TYPEShell Alvania S2, Prepacked
- TOLERANCEISO Normal
- MANUFACTURERS PART NUMBER5201ZZ
- OPERATING TEMPERATURE-13 to 248°F
- SHAFT FILLET CORNER RADIUS MAX (mm)0.6
Additional Information
- UNSPSC: 31171531
- Brand: Smt
- Package Quantity: 1
- Country of Origin: JP
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 1.34
- Package Width: 1.34
- Package Height: 0.70
- Package Weight: 0.13
Product info last updated on August 26, 2024 2:21pm UTC
Category: Bearings
