SMT 5200-2RS Double Row Angular Contact Ball Bearing Double Sealed OD 30mm Bore 10mm Metric 5200-2RS
SMT 5200-2RS Double Row Angular Contact Ball Bearing Double Sealed OD 30mm Bore 10mm Metric 5200-2RS
This item is NOT returnable.
This item is NOT cancellable.

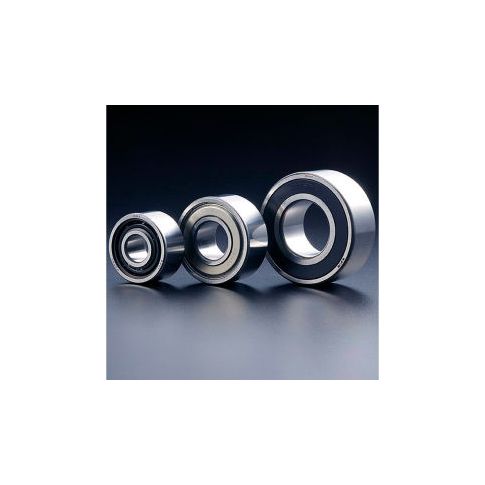

SMT 5200-2RS Double Row Angular Contact Ball Bearing, Double Sealed, OD 30mm, Bore 10mm, Metric
SMT 5200 series Double Row Angular Contact Ball Bearings consist of two single row angular contact ball bearings matched Back to Back arrangement, with inner and outer rings integrated. These bearings have the same bores and outside diameters as the corresponding bearings, 6200 series. SMT 5200 series are suitable for increased axial and radial rigidity in applications that design limits space. The contact angle is 30 degree inverted outside.
SMT 5200 series Double Row Angular Contact Ball Bearings consist of two single row angular contact ball bearings matched Back to Back arrangement, with inner and outer rings integrated. These bearings have the same bores and outside diameters as the corresponding bearings, 6200 series. SMT 5200 series are suitable for increased axial and radial rigidity in applications that design limits space. The contact angle is 30 degree inverted outside.
Product Specifications
- BRANDSMT
- BORE DIAMETER MILLIMETERS10
- OUTER DIAMETER MILLIMETERS30
- WIDTH MILLIMETERS14.3
- DYNAMIC LOAD RATING (N)6950
- STATIC LOAD RATING (N)3800
- GREASE RPM15000
- CAGE MATERIALCarbon Steel
- HOUSING CORNER RADIUS MAX (mm)0.6
- CONTACT ANGLE30
- BEARING TYPEDouble Sealed
- LUBRICATION TYPEShell Alvania S2, Prepacked
- TOLERANCEISO Normal
- MANUFACTURERS PART NUMBER5200-2RS
- OPERATING TEMPERATURE-13 to 212°F
- SHAFT FILLET CORNER RADIUS MAX (mm)0.6
Additional Information
- UNSPSC: 31171531
- Brand: Smt
- Package Quantity: 1
- Country of Origin: JP
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 1.26
- Package Width: 1.26
- Package Height: 0.64
- Package Weight: 0.11
Product info last updated on August 26, 2024 2:21pm UTC
Category: Bearings
