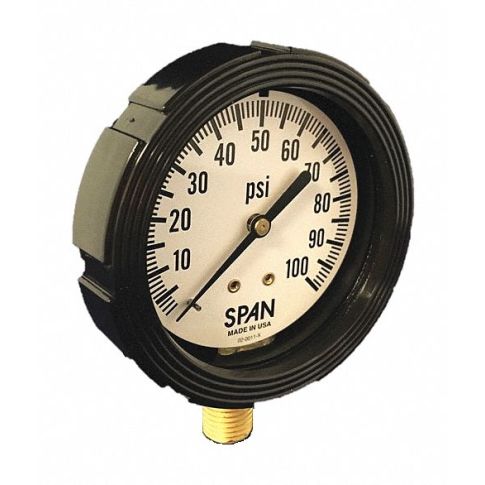

Pressure Gauge 3-1/2 Dial Size Bottom MPN:LFS-220-200#/KPA-G
Pressure Gauge with 3-1/2 dial size is ideal for measuring the pressure levels of liquid, gas or air systems with the ease of reading it from bottom view. With the ability to read both from top and bottom, it minimizes bubbles obstructing the vision and makes it suitable for various industries such as chemical plants, refrigeration units and hydraulics. The durable construction and precision accuracy make it a reliable choice to measure pressure levels accurately without requiring any tools for calibration. The brass body adds an additional layer of durability, while the threaded connection makes installation seamless. Pressure Gauge is perfect for professionals working in industrial or commercial settings where precise pressure monitoring is essential for smooth operation and safety.
Technical Specifications
- Item Pressure Gauge
- Gauge Application General Purpose
- Gauge Nominal Dial Size 3 1/2 in
- Basic Gauge Case Material Plastic
- Basic Gauge Wetted Parts Brass / Bronze
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Bottom
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 200
- Gauge Secondary Range Units kPa
- Gauge Secondary Range Values 0 to 200
- Gauge Accuracy +/-1.00%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable No
- Liquid Filled Yes
- Gauge Primary Range Smallest Graduation 20
- Gauge Case Material Fiber Reinforced Nylon
- Gauge Primary Range Numbered Graduations 20
- Gauge Case Color Black
- Basic Gauge Socket Material Brass
- Gauge Socket Material Brass
- Basic Gauge Sensor Material Bronze
- Gauge Sensor Material Bronze
- Gauge Lens Material Plastic
- Gauge Filled With Glycerin
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -20 Degrees to 150 Degrees F
- Gauge Special Options Heavy Duty
- Characteristics With Brass Internals
- For Use With Brass, Industrial Applications, Media Compatible with Copper Alloy
- Calibration Certificate Included No
- Series LFS
- Includes Vent Plug
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Span
- Condensed Mfg Number: LFS220200KPAG
- MPN: LFS-220-200#/KPA-G
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 23151820
- UNSPSC Class ID: 18
- UNSPSC Commodity Name: Pharmaceutical industry machinery and equipment and supplies
- UNSPSC Commodity ID: 20
- UNSPSC Commodity Name: Pressure gauge
- UNSPSC Family ID: 15
- UNSPSC Family Name: Industrial process machinery and equipment and supplies
- UNSPSC Segment ID: 23
- UNSPSC Segment Name: Industrial Manufacturing and Processing Machinery and Accessories
Shipping Details
- Not For Sale In: HI AK PR
