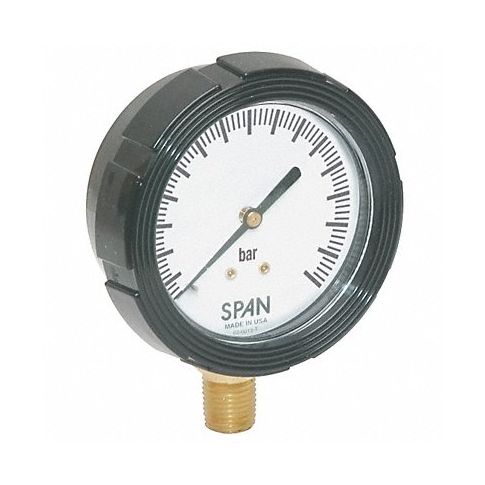

D7964 Compound Gauge 1 Bar Vac to 2 Bar 2-1/2 MPN:LFS-210-(1/0/2 BAR)-G
Free Shipping
In Stock
The D7964 compound gauge is a versatile measuring tool that brings convenience into reading multiple pressures at one go, with a range from vacuum to 2 bars (29psi); the dial face has clear markings for both pressure units plus accuracy up to 1% of full scale thus eliminating guesswork; its corrosion-resistant brass body makes it durable even when used in harsh surroundings like oil refineries or chemical plants where moisture might pose as a concern. This gauge also comes with easy-to-read large dial face which measures 2-1/2 inches, minimizing eye strain during long hours of work; backed by Bacharach an established player within gas analysis equipment manufacturing scene ensures superior performance even in demanding conditions. Additionally, being equipped with sturdy brass case along with bourdon tube pressure sensing element make this device suitable not only for industrial settings but also garages or laboratories which require accurate readings constantly- rendering it essential piece among many professions who deal extensively pressures such as automotive mechanics, HVAC technicians or refrigeration engineers among others making this D7964 Compound Gauge 1 Bar Vac to 2 Bar 2-1/2 a highly sought-after product globally due its quality assurance.
Technical Specifications
- Item Compound Gauge
- Gauge Application General Purpose
- Gauge Nominal Dial Size 2 1/2 in
- Basic Gauge Case Material Plastic
- Basic Gauge Wetted Parts Brass / Copper
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Bottom
- Gauge Primary Range Units Bar/Bar
- Gauge Primary Range Values -1 to 0 to 2
- Gauge Accuracy +/-1.00%
- Pressure and Vacuum Gauge Type Compound Gauge
- Gauge Panel Mountable No
- Liquid Filled Yes
- Gauge Primary Range Smallest Graduation 0.05
- Gauge Case Material Zytel Nylon
- Gauge Case Color Black
- Basic Gauge Socket Material Brass
- Gauge Socket Material Brass Alloy
- Basic Gauge Sensor Material Copper
- Gauge Sensor Material Copper Alloy
- Gauge Lens Material Polycarbonate
- Gauge Filled With Glycerin
- Basic Gauge Lens Material Plastic
- Operating Temp. Range -40 Degrees to 150 Degrees F
- Calibration Certificate Included No
- Series LFS-210-BAR
Manufacturer Details
- Manufacturer: Span
- Condensed Mfg Number: LFS210102BARG
- MPN: LFS-210-(1/0/2 BAR)-G
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112406
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Vacuum gauges
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
