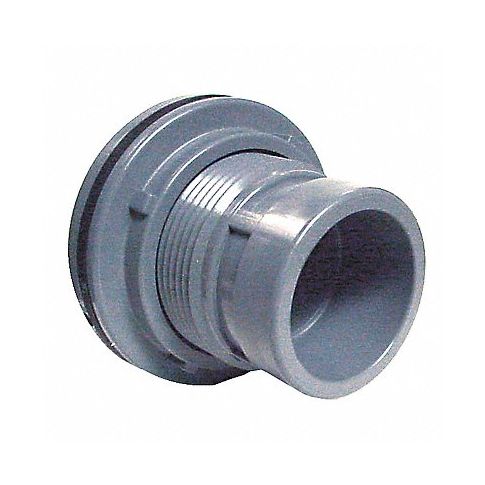

Bulkhead Tank Fitting 1 1/4 In FNPT CPVC MPN:8172-012C
The bulkhead tank fitting from American BioTech Supply offers excellent versatility for diverse plumbing applications requiring secure connections between pipes and tanks with easy installation. Constructed from sturdy CPVC materials, this durable product offers chemical-resistant properties perfect for corrosive environments found in industrial or agricultural settings while maintaining strength under high pressure situations. Its 1 1/4 inches female national pipe thread connection design ensures a sealed fit to prevent leakage and its unthreaded back end enables an additional union or fitting attachment for further customization according to user needs within the system, all without fear of contamination due to rust or breakdown over time. Additionally, it provides ease in maintenance operations as it meets NSF61 standards suitable for use in drinking water supply systems making it the optimal choice when ensuring efficient performance across various industries ranging from hospitals to municipal water treatment plants where reliability and safety are imperative to prevent downtime or failure.
Technical Specifications
- Item Bulkhead Tank Fitting
- Body Material CPVC
- Pipe Size 1 1/4 in
- Connection Type FNPT x FNPT
- Required Hole Size 2 1/3 in
- Gasket Material Neoprene
- Max. Pressure 150 psi
- Length 3 13/32 in
- Temp. Range 0 Degrees to 73 Degrees F
- Color Gray
- Standards LPCB
Manufacturer Details
- Manufacturer: Spears
- Condensed Mfg Number: 8172012C
- MPN: 8172-012C
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 3917400090
- GDS Category Name: Bulkhead Tank Fittings
- GDS Family Name: Pipe Fittings and Couplings
- GDS Segment Name: Plumbing
- UNSPSC: 40141734
- UNSPSC Class ID: 17
- UNSPSC Commodity Name: Hardware and fittings
- UNSPSC Commodity ID: 34
- UNSPSC Commodity Name: Hose fitting
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
