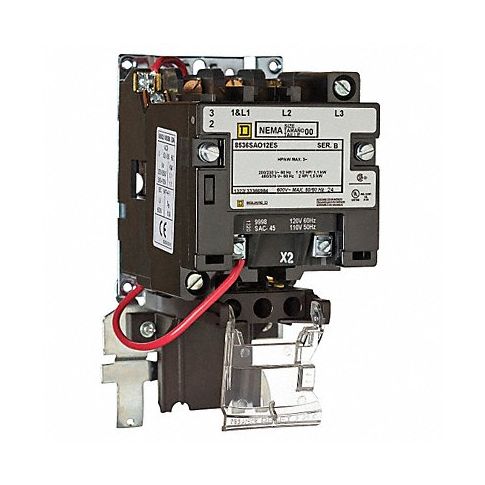

Magnetic Motor Starter NEMA 120V 18A 3P MPN:8536SBO2V02ES
Magnetic Motor Starter NEMA 120V 18A 3P
Introducing the Magnetic Motor Starter NEMA 120V 18A 3P from Square D, the ideal choice for controlling and protecting AC motors in industrial settings. Designed with versatility and efficiency in mind, this motor starter offers full-voltage starting and stopping capabilities while providing reliable protection against overloads. Its compact and lightweight design makes it easy to install and operate in tight spaces, making it the perfect addition to any facility's electrical control system. With its durable construction and state-of-the-art technology, this motor starter is ideal for use in various applications such as HVAC, pumps, and machinery, providing a secure and efficient means of controlling and protecting your motor systems.
Top product features:
- Full-voltage starting and stopping of AC squirrel-cage motors
- Compact and lightweight design for easy installation in tight spaces
- Reliable protection against motor overloads with an optional overload relay
Top product applications:
- Starting and stopping of AC squirrel-cage motors in industrial settings
- Controlling AC motors in HVAC systems
- Managing and protecting motor overloads in machinery equipment
For full-voltage starting and stopping of AC squirrel-cage motors. Requires an overload relay, sold separately, that provides motor overload protection. 600V max.
Technical Specifications
- Item Magnetic Motor Starter
- NEMA Size 0
- Amps AC 18 A
- Coil Volts 120V AC
- Enclosure NEMA Rating No Enclosure
- HP @ 3 Phase - 240V 3 hp
- HP @ 3 Phase - 480V 5 hp
- Action Nonreversing
- Number of Poles 3
- HP @ 3 Phase - 208V 3 hp
- HP @ 3 Phase - 575V 5 hp
- Height 6.77 in
- Width 3.5 in
- Depth 4.22 in
- Standards UL Listed/CSA Certified
- Includes Separate Control
- Starter Type NEMA
- Hz 50/60
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 8536SBO2V02ES
- MPN: 8536SBO2V02ES
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8503006060
- GDS Category Name: Magnetic Starters with Thermal Overload
- GDS Family Name: Starters and Contactors
- GDS Segment Name: Electrical
- UNSPSC: 39121521
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 21
- UNSPSC Commodity Name: Motor starter controls
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:18pm UTC
Category: Starters and Contactors
