Circuit Breaker 30A Plug In 120/240V 2P MPN:QO230
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-cxg-1d307

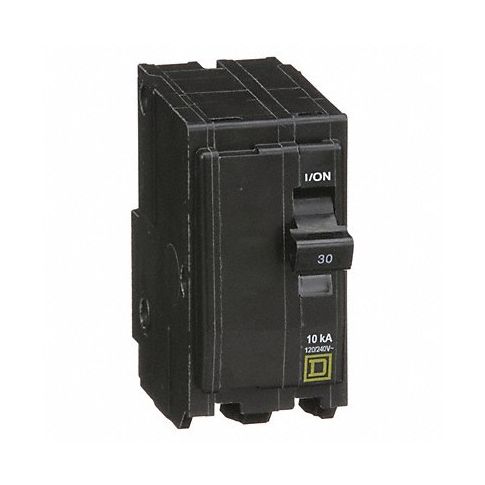

Circuit Breaker 30A Plug In 120/240V 2P
Our Circuit Breaker 30A Plug In 120/240V 2P from Square D is a convenient and reliable solution for your home's electrical needs. Equipped with a 30 A rating, this circuit breaker can handle up to 20800 Watts of power. With its standard AC voltage rating of 120/240V, it's suitable for both residential and light commercial applications. The miniature design makes it easy to install in your existing QO panelboard or load center without requiring additional DIN rails or bolts. Its advanced technology helps detect low-level faults and interrupt the circuit to prevent damage. Use this durable circuit breaker to protect your family, valuable appliances, and electrical systems from potential hazards.
Top product features:
- Standard AC voltage rating of 120/240V
- Miniature design for easy installation in existing QO panelboards or load centers
- Advanced technology to detect low-level faults and interrupt the circuit
Top product applications:
- Home electrical protection in residential properties
- Circuit protection for power tools and appliances
- Commercial and light industrial electrical distribution systems
These QO series miniature circuit breakers plug into place in NQOD and NQ panelboards and QO load centers without requiring DIN rail or bolts, so they're easier to install than bolt-on and unit-mount breakers. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the panelboard or load center.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 30 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Standard
- Number of Poles 2
- DC Voltage Rating 48V DC
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QO
- Max. AIR Rating 10kA at 120/240V AC
- For Use With QO Load Centers and NQ Panelboards
- Terminal Connection Pressure plate
- Frame Size 100A/QO
- Length 3.0 in
- Width 1.5 in
- Depth 2.91 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 14 AWG
- Max. Wire Size 8 AWG
- Standards CSA Certified, HACR, UL Listed
