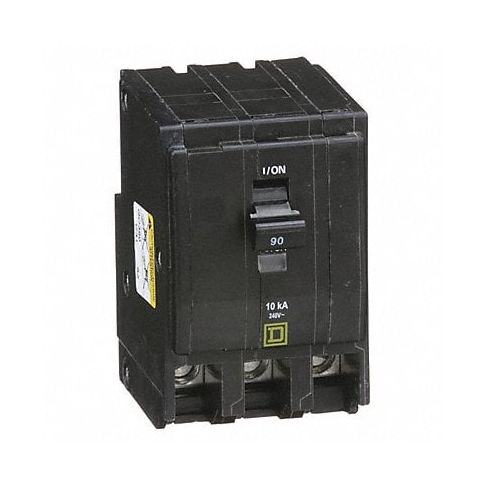

Circuit Breaker 90A Plug In 120/240V 3P MPN:QO390
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-1D331
Circuit Breaker 90A Plug In 120/240V 3P
The Square D Circuit Breaker 90A Plug In is an ideal choice for protecting electrical circuits from low-level faults in panelboards or load centers. These miniature circuit breakers plug into place without the need for bolts or DIN rail, making installation faster and easier. The QO series breaks currents on detection, ensuring safe and efficient performance. These breakers are suitable for residential, commercial, or industrial applications and can handle a voltage rating of 120/240V AC. With a capacity of 90 A, this circuit breaker is designed to provide reliable protection against overloads and short circuits. Its standard circuit breaker type ensures easy compatibility with various electrical systems.
Top product features:
- Plug-in design for easy installation
- Detects and interrupts low-level faults in circuits
- Suitable for residential, commercial or industrial applications
Top product applications:
- Home electrical circuits protection
- Light commercial and industrial control panels
- Residential and light commercial load centers
These QO series miniature circuit breakers plug into place in NQOD and NQ panelboards and QO load centers without requiring DIN rail or bolts, so they're easier to install than bolt-on and unit-mount breakers. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the panelboard or load center.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 90 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Standard
- Number of Poles 3
- DC Voltage Rating 48V DC
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series QO
- Phase Three
- Series QO
- Max. AIR Rating 10kA at 120/240V AC
- For Use With QO Load Centers and NQ Panelboards
- Terminal Connection Lug
- Frame Size 100A/QO
- Length 3.5 in
- Width 2.25 in
- Depth 2.91 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 4 AWG
- Max. Wire Size 2 AWG
- Standards CSA Certified, HACR, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QO390
- MPN: QO390
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
