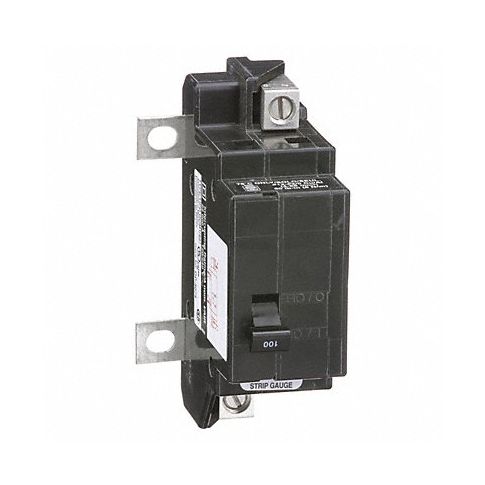

Circuit Breaker 100A Bolt On 120/240V 2P MPN:QOM100VH
Free Shipping
In Stock
Introducing our latest main circuit breaker designed specifically for QO load centers with convertible mains, the Square D QOM series offers unparalleled protection against overcurrents and short circuits. With a horizontal handle that allows for easy installation, this 100A bolt-on circuit breaker is perfect for both top or bottom feed applications. The bus bar orientation eliminates the need for pigtail wiring, making installation a breeze, while the convertible main feature ensures seamless transitioning between the incoming feeders of your load center. Providing up to 120/240V AC voltage rating, this circuit breaker is ideal for residential and light commercial settings where higher amperage is required. Upgrade your load center today with the Square D QOM series main circuit breaker and enjoy the peace of mind that comes with exceptional protection and reliability.
Top product features:
- Convertible main feature for seamless transitioning between incoming feeders of your load center.
- Straight-in wiring through bus bars without pigtail wires for easy installation.
- Horizontal handle for top or bottom feed applications.
Top product applications:
- Protection against overcurrents and short circuits in residential load centers with convertible mains.
- Protection for light commercial settings where higher amperage is required.
- Installation as a bolt-on circuit breaker on load centers without pigtail wires, providing easy conversion from bottom feed to top feed applications.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 100 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Main Breaker
- Number of Poles 2
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QOM
- Max. AIR Rating 22kA at 120/240V AC
- For Use With Square D 125 Amp Single Phase Convertible Load Centers (QOM1 Frame Size)
- Terminal Connection Lug
- Frame Size 100A/QO
- Length 5.09 in
- Width 5.0 in
- Depth 3.47 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 12 AWG
- Max. Wire Size 2 AWG
- Standards CSA, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QOM100VH
- MPN: QOM100VH
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
