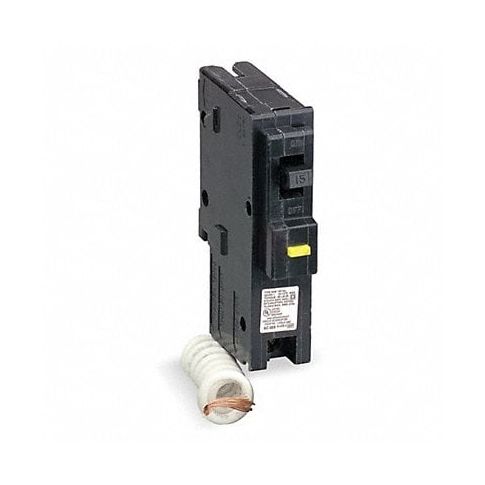

Circuit Breaker 15A Plug In 120V 1P MPN:HOM115GFI
Free Shipping
In Stock
Introducing Square D's HOM series ground fault circuit interrupter (GFCI) circuit breakers designed for easy installation in Homeline load centers. These 15A GFCI circuit breakers feature a plug-in design, eliminating the need for DIN rail or bolts, and are perfect for protecting outlets in your home against electrical hazards caused by ground faults. With their ability to interrupt low-level fault currents and protect against electrical shocks, these circuit breakers provide ultimate protection for homes, offices, and commercial buildings. Their compatibility with bus bars simplifies the installation process, and their easy-to-read indicators alert you in case of a fault, ensuring peace of mind for your loved ones. Use them for indoor or outdoor applications, such as protecting appliances, electronics, or lighting fixtures, and safeguard your electrical system with Square D's HOM series GFCI circuit breakers.
Top product features:
- Plug-in design for easy installation in Homeline load centers
- Interrupts low-level fault currents
- Compatible with bus bars for organized power supply connections
Top product applications:
- Protect electrical outlets in homes and small businesses
- Safeguard appliances, electronics, and lighting fixtures
- Provide a cost-effective solution for GFCI protection
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 15 A
- AC Voltage Rating 120V AC
- Circuit Breaker Type Ground Fault Circuit Interrupter (Class A - 5mA)
- Number of Poles 1
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series HOM
- Phase Single
- Series HOM
- Max. AIR Rating 10kA at 120V AC
- For Use With Homeline Load Center
- Terminal Connection Screw Clamp
- Frame Size 100A/HOM
- Length 3.13 in
- Width 1 in
- Depth 2.98 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 14 AWG
- Max. Wire Size 10 AWG
- Standards CSA Certified, HACR, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: HOM115GFI
- MPN: HOM115GFI
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
