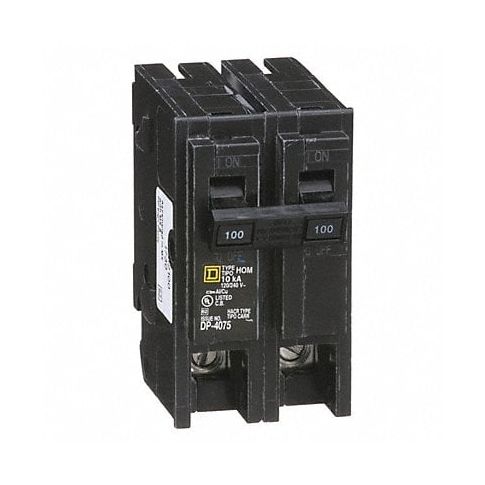

Circuit Breaker 100A Plug In 120/240V 2P MPN:HOM2100
Free Shipping
In Stock
Introducing Square D HOM series miniature circuit breakers - the ideal solution for increasing electrical safety and reliability in homes and small businesses. These 100A Plug In circuit breakers are designed to plug into Homeline load centers, providing easy installation without the need for DIN rail or bolts. With their ability to detect low-level faults and interrupt currents, these breakers ensure that your electrical system is protected from potential hazards. Their connection to the power supply through bus bars eliminates the need to pigtail wires and helps organize the load center, making it easier for you to manage and maintain your electrical infrastructure. Equipped with a standard circuit breaker type, these breakers can handle up to 100 amps of current and are suitable for applications involving 120/240V AC voltages. Upgrade your electrical safety today with Square D HOM series miniature circuit breakers!
Top product features:
- Plug-in design for easy installation without DIN rail or bolts
- Interrupts currents upon low-level fault detection
- Connects to power supply through bus bars
Top product applications:
- Protecting electrical circuits and equipment from overloads and short-circuit currents in homes and small businesses
- Used as an additional layer of protection for sensitive electronics and appliances connected to the circuit
- Suitable for use in light commercial applications like office buildings, convenience stores or other similar facilities
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 100 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Standard
- Number of Poles 2
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series HOM
- Phase Single
- Series HOM
- Max. AIR Rating 10kA at 120/240V AC
- For Use With Homeline Load Center
- Terminal Connection Lug
- Frame Size 100A/HOM
- Length 3.13 in
- Width 2 in
- Depth 2.98 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 4 AWG
- Max. Wire Size 2 AWG
- Standards CSA Certified, HACR, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: HOM2100
- MPN: HOM2100
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
