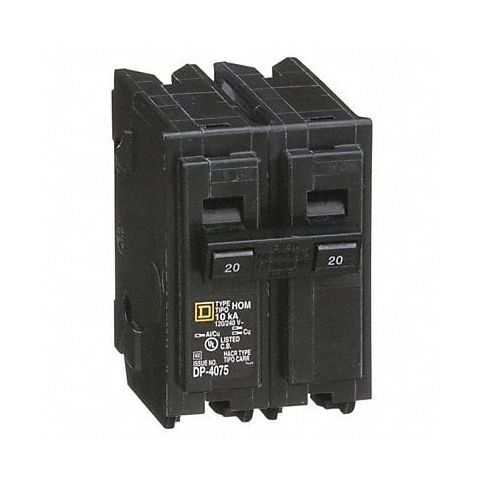

Circuit Breaker 20A Plug In 120/240V 2P MPN:HOM220
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-1D352
Circuit Breaker 20A Plug In 120/240V 2P
Upgrade your electrical system with Square D's HOM series miniature circuit breaker - the perfect solution for a smart home or office. This 20A plug-in breaker easily installs in Homeline load centers without the need for DIN rail or bolts, saving you time and hassle. Its compact design saves space while keeping your area organized. The breaker detects low-level faults and interrupts currents to prevent hazards like fires or electrical damages. With a rating of 120/240V AC, this breaker can be used in various applications such as residential wiring systems, office installations, or any other system that requires reliable overload protection. Invest in peace of mind and upgrade to Square D's HOM series miniature circuit breaker today!
Top product features:
- Easy installation without requiring DIN rail or bolts
- Interrupts currents when low-level faults are detected
- Connects to power supply through bus bars
Top product applications:
- Home electrical systems for protection against faults
- Office building wiring to prevent overloads or short circuits
- Industrial settings where circuit breakers are needed for safety
These HOM series miniature circuit breakers plug into place in Homeline load centers without requiring DIN rail or bolts, so they're easier to install than unit-mount or bolt-on breakers. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the load center.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 20 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Standard
- Number of Poles 2
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series HOM
- Phase Single
- Series HOM
- Max. AIR Rating 10kA at 120/240V AC
- For Use With Homeline Load Center
- Terminal Connection Screw Clamp
- Frame Size 100A/HOM
- Length 3.13 in
- Width 2 in
- Depth 2.98 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 14 AWG
- Max. Wire Size 8 AWG
- Standards CSA Certified, HACR, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: HOM220
- MPN: HOM220
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
