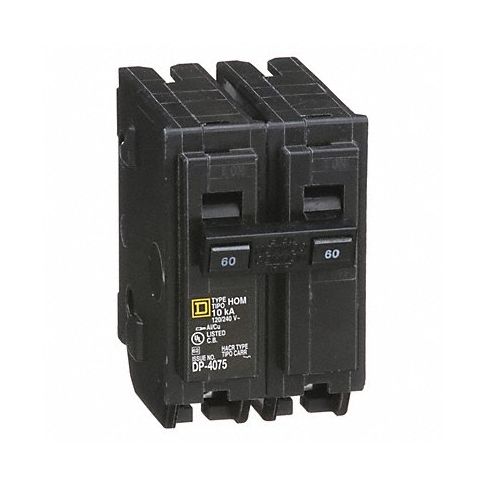

Circuit Breaker 60A Plug In 120/240V 2P MPN:HOM260
Free Shipping
In Stock
Introducing our HOM series miniature circuit breakers - the perfect solution for easy installation in your load centers! Say goodbye to the hassle of DIN rail or bolt mounting with these plug-in breakers that are easier to install than unit mounts or bolton options. Designed to interrupt low-level fault currents, our HOM series circuit breakers provide reliable protection against overloads and short circuits in your electrical system. The best part? By connecting directly to power through bus bars, there's no need for pigtail wires and your load center will be neatly organized. With a 60-amp rating and compatibility with both 120V and 240V circuits, our circuit breakers are versatile enough to fit various applications in residential or light commercial settings. Upgrade your electrical safety today and simplify installation with the Square D HOM series miniature circuit breakers!
Top product features:
- Plug-in installation: Simplifies and speeds up installation without requiring DIN rail or bolts.
- Interrupts low-level fault currents: Provides reliable protection against overloads and short circuits.
- Direct connection to power through bus bars: Eliminates the need for pigtail wires, simplifying wiring and organizing the load center.
Top product applications:
- Residential load centers: Protect circuits in residential settings by preventing overloads and short circuits in electrical systems.
- Light commercial installations: Ensure safe electrical operation and protect against electrical hazards in light commercial applications like office buildings or small businesses.
- Simplified wiring: Eliminate the need for pigtail wires by connecting directly to power through bus bars, making the installation process quicker and more efficient.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 60 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Standard
- Number of Poles 2
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series HOM
- Phase Single
- Series HOM
- Max. AIR Rating 10kA at 120/240V AC
- For Use With Homeline Load Center
- Terminal Connection Lug
- Frame Size 100A/HOM
- Length 3.13 in
- Width 2 in
- Depth 2.98 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 8 AWG
- Max. Wire Size 2 AWG
- Standards CSA Certified, HACR, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: HOM260
- MPN: HOM260
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on September 26, 2024 1:02pm UTC Category: Distribution
