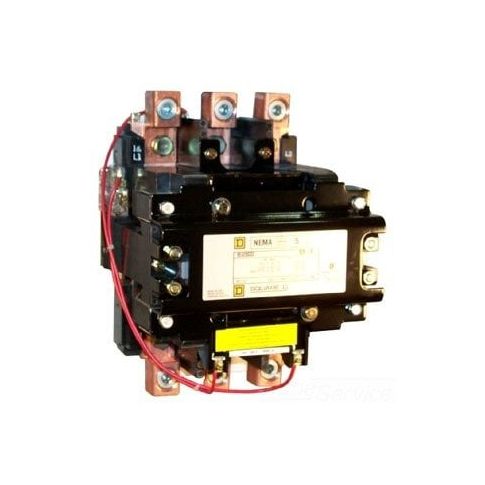

NEMA Magnetic Contactr 270A 120VAC NEMA5 MPN:8502SGO2V02S

Class 8502 Type S magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is separately provided. Normally open holding-circuit contact for 3-wire control is provided as standard. Type S contactors are designed for operation at 600 Volts maximum. Used with heating loads, capacitors, transformers, electric motors, and other power loads where overload protection is provided separately. Commonly used in contruction, infrastructure, oil and gas, transportation and other applications. In accordance with NEMA standards.

Technical Specifications

• Item NEMA Magnetic Contactor
• Full Load Amps 270 A
• Coil Volts 120V AC
• NEMA Contactor Size 5
• Reversing No
• HP @ 3 Phase - 208V 75 hp
• HP @ 3 Phase - 240V 100 hp
• HP @ 3 Phase - 480V 200 hp
• HP @ 3 Phase - 575V 200 hp
• Number of Poles 3
• Enclosure NEMA Rating No Enclosure
• Hz 50/60
• Height 12.31 in
• Width 8.66 in
• Depth 8.75 in
• Frame / Series / Class / Code Class 8502
• Standards CSA, UL

Manufacturer Details

• Manufacturer: Square D
• Condensed Mfg Number: 8502SGO2V02S
• MPN: 8502SGO2V02S

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: MX
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536490065
• GDS Category Name: NEMA Magnetic Contactors
• GDS Family Name: Starters and Contactors
• GDS Segment Name: Electrical
• UNSPSC: 39121529
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 29
• UNSPSC Commodity Name: Contactors
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
