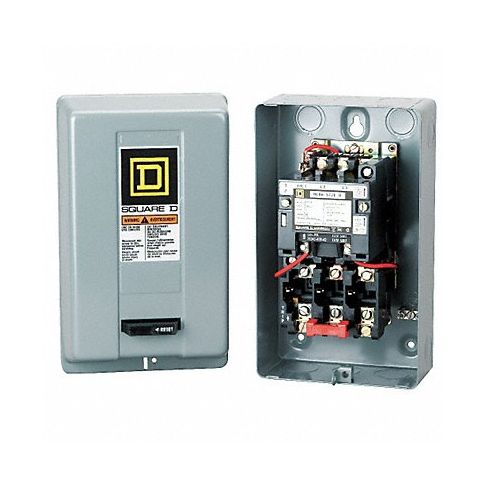

Magnetic Motor Starter NEMA 240V 2P 36A MPN:8536SCG2V03

NEMA Magnetic Motor Starters with Standard Overload Relays
• Melting alloy thermal overload relays Class 20 thermal protection 2- or 3-pole, 60/50 Hz, 600VAC max. Thermal units sold separately.
Full-voltage starters start and stop 1- and 3-phase AC motors. Manual push-to-test and visible trip indicator. Trip-free construction allows overload relay to trip even if reset lever is blocked or in the reset position. Normally open holding circuit contact for 3-wire control. Angled contacts provide high contact pressure and positive seating. Spring-assisted gravity dropout on de-energizing contacts quickly extinguishes any arcing.
UL Listed and CSA Certified.

Technical Specifications

• Item Magnetic Motor Starter
• NEMA Size 1P
• Amps AC 36 A
• Coil Volts 240V AC
• Enclosure NEMA Rating 1
• Action Nonreversing
• Number of Poles 2
• HP @ 1 Phase - 120V 3 hp
• HP @ 1 Phase - 230V 5 hp
• Height 10 in
• Width 6 in
• Depth 5.56 in
• Standards UL Listed/CSA Certified
• Starter Type NEMA
• Hz 50/60

Manufacturer Details

• Manufacturer: Square D
• Condensed Mfg Number: 8536SCG2V03
• MPN: 8536SCG2V03

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: MX
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536504000
• GDS Category Name: Magnetic Starters with Thermal Overload
• GDS Family Name: Starters and Contactors
• GDS Segment Name: Electrical
• UNSPSC: 39121521
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 21
• UNSPSC Commodity Name: Motor starter controls
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
