Thermal Unit 1.77 to 2.25A MPN:B2.65
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-1H616

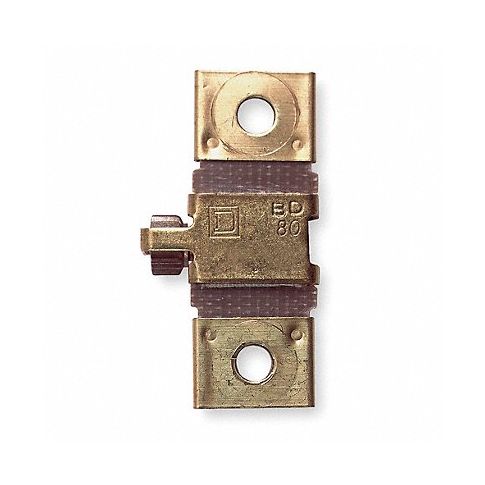

Thermal Unit 1.77 to 2.25A
The Thermal Unit from Square D is an ideal solution for controlling motor startup currents in a variety of industrial applications. Designed to work with Square D NEMA Motor Starters 00, 0, 1, and 1P, this thermal unit features a melting alloy sensing method that provides reliable overload protection against overheating. With a full load amperage ranging from 1.77 to 2.25 Amps, the thermal unit is suitable for applications that require precise control of motor currents, such as in HVAC systems, pumps, and conveyors. Its compact size and durable construction make it an excellent choice for industrial environments where space is limited and performance is crucial.
Top product features:
- Compatibility with Square D NEMA Motor Starters 00, 0, 1, and 1P
- Melting alloy sensing method for reliable overload protection
- Versatile full load amperage range from 1.77 to 2.25 Amps
Top product applications:
- Controlling motor startup currents in HVAC systems
- Regulating pump motors and conveyor systems
- Protecting electrical equipment from overheating
Buy Square D item #B2.65 to have a positive impact 📈 on our community of Service Disabled Veteran-Owned Business partners.
Technical Specifications
- Item Thermal Unit
- Full Load Amps 1.77 to 2.25
- For Use With Square D NEMA Motor Starters 00, 0, 1, 1P
- Sensing Method Melting Alloy
- FL Amp @ 3-Ph/ Size 00,0,1/ Standard Enclosure 1.77
- FL Amp @ 1-Ph/ Size 00,0,1/ Open & Large Enclosure 2.03
- FL Amp @ 1-Ph/ Size 1P/ Open & Large Enclosure 2.16
- FL Amp @ 1-Ph/ Size 00,0,1/ Standard Enclosure 1.93
- FL Amp @ 1-Ph/ Size 1P/ Standard Enclosure 2.16
- FL Amp @ 3-Ph/ Size 00,0,1/ Open & Large Enclosure 1.83
- FL Amp @ 1-Ph/ DP 20-30A/ Standard Enclosure 2.12
- FL Amp @ 1-Ph/ DP 40A/ Standard Enclosure 2.20
- FL Amp @ 3-Ph/ DP 20-30A/ Standard Enclosure 1.94
- FL Amp @ 3-Ph/ DP 40A/ Standard Enclosure 2.03
- FL Amp @ 3-Ph/ DP 20-30A/ Open & Large Enclosure 2.04
- FL Amp @ 3-Ph/ DP 40A/ Open & Large Enclosure 2.09
- FL Amp @ 1-Ph/ Man. Size 0/ Open & Large Enclosure 2.25
- FL Amp @ 1-Ph/ Man. Size 0/ Standard Enclosure 2.10
- FL Amp @ 1-Ph/ Man. Size 1/ Open & Large Enclosure 2.25
- FL Amp @ 1-Ph/ Man. Size 1/ Standard Enclosure 2.10
- FL Amp @ 1-Ph/ Man. Size 1P/ Open & Large Enclosure 2.25
- FL Amp @ 1-Ph/ Man. Size 1P/ Standard Enclosure 2.10
- FL Amp @ 3-Ph/ Man. Size 0/ Open & Large Enclosure 1.91
- FL Amp @ 3-Ph/ Man. Size 0/ Standard Enclosure 1.92
- FL Amp @ 3-Ph/ Man. Size 1/ Open & Large Enclosure 1.91
- FL Amp @ 3-Ph/ Man. Size 1/ Standard Enclosure 1.92
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: B265
- MPN: B2.65
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8538907040
- GDS Category Name: Thermal Units
- GDS Family Name: Starters and Contactors
- GDS Segment Name: Electrical
- UNSPSC: 39121521
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 21
- UNSPSC Commodity Name: Motor starter controls
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B00CONMIJ2, B015QCC75C, B015QCD7Y2
Product info last updated on November 17, 2023 12:18pm UTC Category: Starters and Contactors
