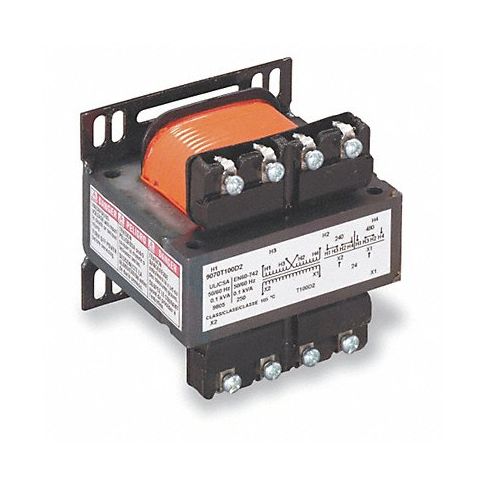

Control Transformer 200VA 4.43 in H MPN:9070T200D2
Free Shipping
In Stock
Introducing the Control Transformer 200VA 4.43 in H from Square D - a powerful and reliable transformer designed for low voltage AC electrical systems. This transformer is ideal for use with contactors, starters, solenoids, relays, and other industrial equipment that require high inrush current. It has low impedance windings for excellent voltage regulation and vacuum impregnated varnish coating to ensure durability and protection against moisture. With a 240V AC or 480V AC input voltage and a 24V AC output voltage, this transformer offers versatile applications in various electrical systems. Its compact size of 4.43 in H makes it easy to install in tight spaces. Whether you're in the automotive, construction, or electronics industry, the Control Transformer from Square D provides reliable power solutions for your operations.
Top product features:
- Low impedance windings for excellent voltage regulation
- Copper wound construction for durability and reliability
- Vacuum impregnation for moisture protection
Top product applications:
- Electrical systems requiring low voltage AC power transformation and regulation
- Industrial equipment with high inrush current requirements, such as contactors, starters, solenoids, and relays
- Electronics projects and DIY electronics enthusiasts looking for reliable transformer components
Technical Specifications
- Item - Transformer Control Transformer
- Input Voltage - Transformer 240V AC, 480V AC
- Output Voltage - Transformer 24V AC
- VA Rating - Transformer 200 VA
- Protective Device None
- Enclosure Style - Transformer Open
- Mounting - Transformer Foot
- Phase - Electrical 1
- Hz - Electrical 50 Hz, 60 Hz
- Temp. Rise 80 Degrees C
- Enclosure Finish No Finish
- Height 4.43 in
- Depth 3.75 in
- Width 3.59 in
- Standards CE Marked, CSA Certified, NOM Certified, UL Listed
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 9070T200D2
- MPN: 9070T200D2
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8504314065
- GDS Category Name: Control Transformers
- GDS Family Name: Transformers
- GDS Segment Name: Electrical
- UNSPSC: 39121002
- UNSPSC Class ID: 10
- UNSPSC Commodity Name: Power conditioning equipment
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Power supply transformers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:18pm UTC Category: Transformers
