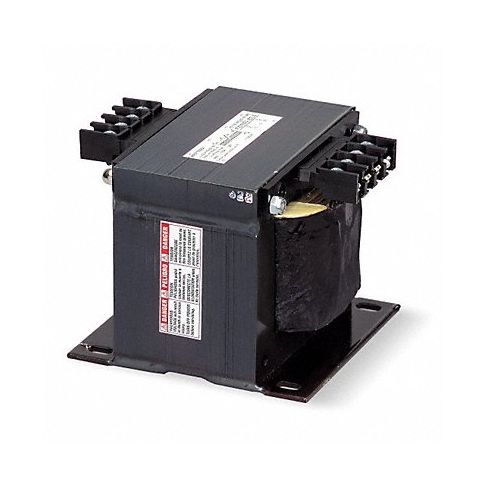

Control Transformer 500VA 4.43 in H MPN:9070T500D20
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-1YUT7
Control Transformer 500VA 4.43 in H
Upgrade your electrical system with this 500VA Control Transformer from Square D! Designed for heavy duty usage, it features low impedance windings to provide excellent voltage regulation, making it perfect for controlling contactors, starters, solenoids, and relays. With input voltages ranging from 208V AC to 480V AC and an output voltage of 120V AC, this transformer is suitable for a variety of applications. Its copper winding and vacuum impregnation with varnish ensure durability and long-lasting performance. With no protective device included, you can customize your transformer according to your specific needs. Invest in the Square D Control Transformer 500VA 4.43 H today and experience the benefits of precision voltage regulation!
Top product features:
- Low impedance windings for excellent voltage regulation
- Copper wound construction for durability and performance
- Vacuum impregnation with varnish for long-lasting use
Top product applications:
- Controlling contactors, starters, solenoids, and relays in industrial settings
- Powering electrical equipment in remote locations where AC power is not available
- Regulating voltage for LED lighting installations
Designed with low impedance windings for excellent voltage regulation, this transformer can accommodate the high inrush current associated with contactors, starters, solenoids, and relays. It is copper wound and vacuum impregnated with varnish.
Technical Specifications
- Item - Transformer Control Transformer
- Input Voltage - Transformer 208V AC, 240V AC, 480V AC
- Output Voltage - Transformer 120V AC
- VA Rating - Transformer 500 VA
- Protective Device None
- Enclosure Style - Transformer Open
- Mounting - Transformer Foot
- Phase - Electrical 1
- Hz - Electrical 50 Hz, 60 Hz
- Temp. Rise 115 Degrees C
- Enclosure Finish Epoxy Resin Varnish
- Height 4.43 in
- Depth 5.25 in
- Width 5.66 in
- Standards CE Compliant, CSA Certified, UL Listed
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 9070T500D20
- MPN: 9070T500D20
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8504314065
- GDS Category Name: Control Transformers
- GDS Family Name: Transformers
- GDS Segment Name: Electrical
- UNSPSC: 39121002
- UNSPSC Class ID: 10
- UNSPSC Commodity Name: Power conditioning equipment
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Power supply transformers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:17pm UTC
Category: Transformers
