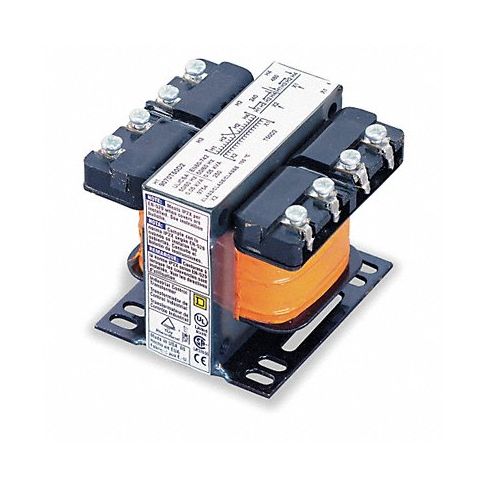

Control Transformer 75VA 3.60 in H MPN:9070T75D20
Control Transformer 75VA 3.60 in H
The Control Transformer from Square D is an ideal choice for reliable voltage regulation in various industrial settings. Designed with low impedance windings, this transformer can accommodate the high inrush current associated with contactors, starters, solenoids, and relays. With a 75 VA rating and output voltage of 120V AC, it is suitable for a wide range of applications that require a controlled output voltage. Its compact size of 3.6 inches in height makes it easy to install in tight spaces. This versatile transformer offers excellent value and durability, making it an excellent investment for your business or home.
Top product features:
- Low impedance windings for excellent voltage regulation
- Compact size of 3.6 inches in height
- Versatile design for various industrial settings
Top product applications:
- Controlling the output voltage of electronic devices in an industrial setting
- Providing reliable power for relay circuits in electrical systems
- Regulating voltage for various motor starters and solenoids
Designed with low impedance windings for excellent voltage regulation, this transformer can accommodate the high inrush current associated with contactors, starters, solenoids, and relays.
Technical Specifications
- Item - Transformer Control Transformer
- Input Voltage - Transformer 208V AC, 240V AC, 480V AC
- Output Voltage - Transformer 120V AC
- VA Rating - Transformer 75 VA
- Protective Device None
- Enclosure Style - Transformer Open
- Mounting - Transformer Foot
- Phase - Electrical 1
- Hz - Electrical 50 Hz, 60 Hz
- Temp. Rise 55 Degrees C
- Enclosure Finish Epoxy Resin Varnish
- Height 3.6 in
- Depth 4.3 in
- Width 4.1 in
- Standards CE Marked, CSA Certified, NOM Certified, UL Listed
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 9070T75D20
- MPN: 9070T75D20
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8504314065
- GDS Category Name: Control Transformers
- GDS Family Name: Transformers
- GDS Segment Name: Electrical
- UNSPSC: 39121001
- UNSPSC Class ID: 10
- UNSPSC Commodity Name: Power conditioning equipment
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Distribution power transformers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 12:37am UTC
