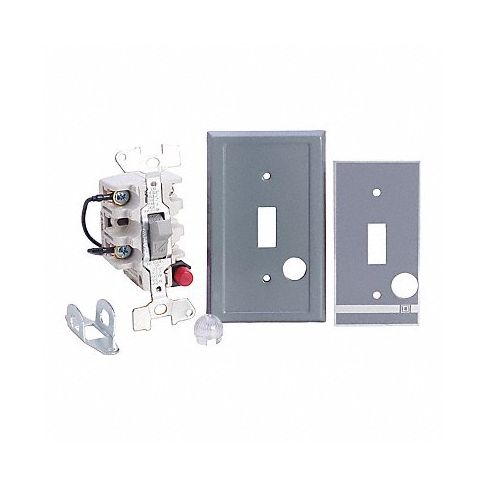

Manual Motor Switch 30A 600VAC/230VDC 3P MPN:2510KF2

Nonreversing Square D NEMA 3-Pole Manual Motor Switch provides On/Off control of 1- or 3-phase AC motors where overload protection is not required or is provided separately. The open switch fits a standard single-gang switch box and works with any cover plate that has a standard toggle cutout. Use in small machine tools, pumps, fans, conveyors, and electrical machinery, and also for nonmotor loads such as resistance heaters.

Technical Specifications

• Item Manual Motor Switch
• Operator Toggle
• Enclosure NEMA Rating No Enclosure
• Amps AC 30 A
• Starter Type NEMA Style
• Number of Poles 3
• Description/Special Features Gray Flush Plate
• Max. Voltage 600V AC/230V DC
• HP @ 3 Phase - 240V 7 1/2 hp
• HP @ 3 Phase - 480V 10 hp
• Height 4.5 in
• Width 2.75 in
• Depth 2.5 in
• HP @ 1 Phase - 120V 2 hp
• HP @ 1 Phase - 230V 7 1/2 hp
• HP @ 3 Phase - 460-575V 10 hp
• HP @ 3 Phase - 575V 10 hp
• HP @ 115VDC 2 hp
• HP @ 230VDC 1 1/2 hp
• Standards CE, CSA, UL
• Pilot Light No
• Phase Loss Sensitivity No

Manufacturer Details

• Manufacturer: Square D
• Condensed Mfg Number: 2510KF2
• MPN: 2510KF2

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: MX
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536504000
• GDS Category Name: Manual Motor Switches
• GDS Family Name: Starters and Contactors
• GDS Segment Name: Electrical
• UNSPSC: 39121521
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 21
• UNSPSC Commodity Name: Motor starter controls
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
