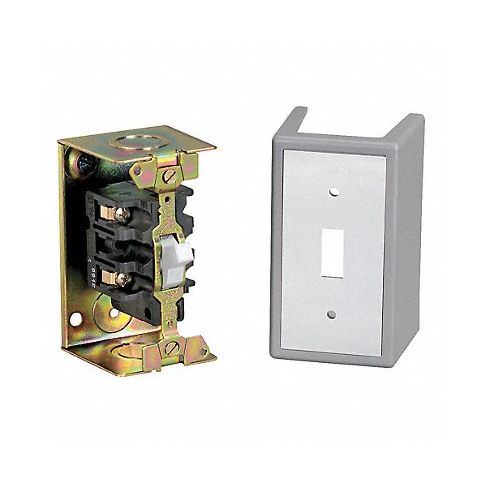

Manual Motor Switch 30A 600VAC/230VDC 2P MPN:2510KG1A
Free Shipping
In Stock
The Square D 2-Pole NEMA Manual Motor Switch is designed to provide On/Off control for AC motors and other non-motor loads where overload protection is not required or is provided separately. Its rugged construction, easy-to-use toggle operator, and IP54 rating make it suitable for a wide range of applications in industries such as machinery, pumps, fans, conveyors, and electrical machinery. With an amperage rating of 30A, this nonreversing switch is ideal for use with single or three-phase motors, providing reliable control and switching for your equipment. Its compact size and enclosure rating make it perfect for use in tight spaces where durability and performance are key considerations. The Square D 2-Pole NEMA Manual Motor Switch provides the ideal solution for your motor control needs.
Top product features:
- Nonreversing Switch: This ensures one-way control for AC motors, preventing accidental reversal of rotation.
- Toggle Operator: The easy-to-use switch allows for quick On/Off control with minimal effort.
- IP54 Rating: Provides protection against water and dust ingress, increasing durability in harsh environments.
Top product applications:
- Controlling single-phase and three-phase AC motors in industrial settings where overload protection is not needed or provided by other means.
- Managing On/Off control for fans, pumps, and conveyors in factories and commercial buildings.
- Operating resistance heaters and other electrical machinery requiring simple switching solutions.
Technical Specifications
- Item Manual Motor Switch
- Operator Toggle
- Enclosure NEMA Rating 1
- Amps AC 30 A
- Starter Type NEMA Style
- Number of Poles 2
- Description/Special Features 115V AC Pilot Light
- Max. Voltage 600V AC/230V DC
- HP @ 3 Phase - 240V 2 hp
- HP @ 3 Phase - 480V 3 hp
- Height 4.25 in
- Width 2.88 in
- Depth 2.75 in
- HP @ 1 Phase - 120V 2 hp
- HP @ 1 Phase - 230V 2 hp
- HP @ 3 Phase - 460-575V 3 hp
- HP @ 3 Phase - 575V 3 hp
- HP @ 115VDC 2 hp
- HP @ 230VDC 1 1/2 hp
- Standards CE, CSA, UL
- Pilot Light Yes
- Phase Loss Sensitivity No
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 2510KG1A
- MPN: 2510KG1A
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536504000
- GDS Category Name: Manual Motor Switches
- GDS Family Name: Starters and Contactors
- GDS Segment Name: Electrical
- UNSPSC: 39121521
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 21
- UNSPSC Commodity Name: Motor starter controls
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:15pm UTC Category: Starters and Contactors
