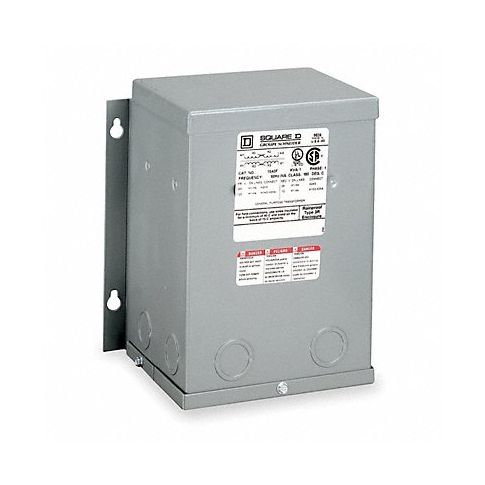

Transformer 120/240VAC 16/32VAC 1.5kVA MPN:1.5S46F
Free Shipping
In Stock
Introducing the Square D Transformer, an indispensable tool for protecting your equipment and ensuring a stable power supply. This versatile transformer is perfect for use in induction motors, air conditioning systems, lighting, and heating systems, making it ideal for commercial and industrial settings alike. Its buck-boost feature allows you to adjust the input voltage from 120V to 240V while the output can be varied between 16V and 32V, providing greater flexibility and control. The 1.5kVA VA rating ensures that your equipment is protected from damage caused by fluctuations in power, while its single phase electrical design makes it suitable for a wide range of applications. With the Square D Transformer on hand, you can rest assured that your systems will always be running smoothly and efficiently.
Top product features:
- Buck-boost functionality to protect equipment from power fluctuations
- Adjustable input voltage range (120V to 240V) and output voltage range (16V to 32V) for greater flexibility
- Autotransformer feature for connecting primary and secondary lead wires for a wide range of applications
Top product applications:
- Protecting industrial equipment from voltage fluctuations and power outages
- Powering LED lighting systems in commercial spaces where power supply is unstable or inconsistent
- Running small appliances and electronics in remote locations where the standard voltage may not match the device's requirements
Technical Specifications
- Item - Transformer Buck Boost Transformer
- Input Voltage - Transformer 120V AC, 240V AC
- Output Voltage - Transformer 16V AC, 32V AC
- VA Rating - Transformer 1.5 kVA
- Phase - Electrical 1
- Hz - Electrical 60 Hz
- Mounting - Transformer Wall
- Outdoor Rated - Transformer Yes
- Temp. Rise 115 Degrees C
- Enclosure Rating NEMA 3R
- IP Rating 54
- Color Gray
- Enclosure Finish Powder Coated
- Height 8.3 in
- Standards carrying cULus Label, CSA Certified via UL, NEMA ST-20, UL Listed
- Depth 6.6 in
- Width 8.7 in
- Knockout Size - Transformer 1/2 in, 3/4 in
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 15S46F
- MPN: 1.5S46F
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8504320000
- GDS Category Name: Buck Boost Transformers
- GDS Family Name: Transformers
- GDS Segment Name: Electrical
- UNSPSC: 39121002
- UNSPSC Class ID: 10
- UNSPSC Commodity Name: Power conditioning equipment
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Power supply transformers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:18pm UTC Category: Transformers
