Transformer 120/240VAC 16/32VAC 1kVA MPN:1S46F
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-2CM61
Transformer 120/240VAC 16/32VAC 1kVA

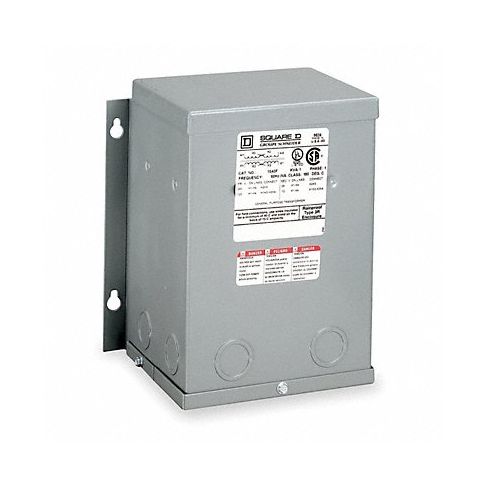

Introducing the Square D Buck Boost Transformer, perfect for transforming 120V or 240V AC input voltage into either 16V or 32V AC output voltage. With a capacity of 1kVA, this transformer is ideal for use in induction motors and air conditioning, lighting, and heating systems. Its buck-boost feature allows you to reduce or raise line voltage 5% to 20%, providing flexibility and enhanced performance for your equipment. Primary and secondary lead wires can be interconnected for use as an autotransformer, making it easy to customize the output voltage to your specific needs. With its compact design and durable construction, the Square D Buck Boost Transformer is a versatile and reliable solution for any jobsite or installation.
Top product features:
- Buck-boost transformer allows reducing/raising voltage 5-20% for equipment protection
- Primary and secondary lead wires interconnectable as an autotransformer customizable output voltage
- Versatile use in induction motors, air conditioning, lighting, and heating systems suitable for various applications
Top product applications:
- Running induction motors provides adjustable voltage for motor operation
- Operating lighting systems in residential or commercial settings customizable voltage for various light types
- Powering heating systems in homes or buildings adjustable voltage for optimal temperature control
Buck-boost transformer protects connected equipment from damage by reducing (bucking) or raising (boosting) line voltage 5% to 20%. Primary and secondary lead wires can be interconnected for use as an autotransformer. For use in induction motors and air conditioning, lighting, and heating systems.
Technical Specifications
- Item - Transformer Buck Boost Transformer
- Input Voltage - Transformer 120V AC, 240V AC
- Output Voltage - Transformer 16V AC, 32V AC
- VA Rating - Transformer 1 kVA
- Phase - Electrical 1
- Hz - Electrical 60 Hz
- Mounting - Transformer Wall
- Outdoor Rated - Transformer Yes
- Temp. Rise 115 Degrees C
- Enclosure Rating NEMA 3R
- IP Rating 54
- Color Gray
- Enclosure Finish Powder Coated
- Height 8.2 in
- Standards carrying cULus Label, CSA Certified via UL, NEMA ST-20, UL Listed
- Depth 5.4 in
- Width 7.0 in
- Knockout Size - Transformer 1/2 in
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 1S46F
- MPN: 1S46F
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8504316000
- GDS Category Name: Buck Boost Transformers
- GDS Family Name: Transformers
- GDS Segment Name: Electrical
- UNSPSC: 39121002
- UNSPSC Class ID: 10
- UNSPSC Commodity Name: Power conditioning equipment
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Power supply transformers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B000CCSOMW
Product info last updated on November 17, 2023 12:18pm UTC Category: Transformers
